IRFW620B Datasheet - Fairchild Semiconductor

IRFW620B N-Channel MOSFET

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the a.

IRFW620B Features

* 5.0A, 200V, RDS(on) = 0.8Ω @VGS = 10 V Low gate charge ( typical 12 nC) Low Crss ( typical 10 pF) Fast switching 100% avalanche tested Improved dv/dt capability D D !

* ◀ ▲

* G S D2-PAK IRFW Series G D S I2-PAK IRFI S

IRFW620B_FairchildSemiconductor.pdf

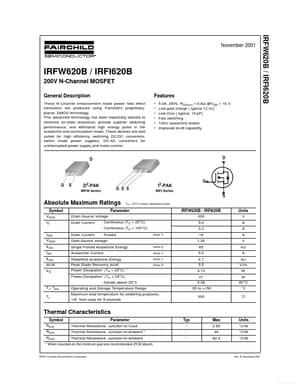

Preview of IRFW620B PDF
IRFW620B Datasheet Preview Page 2 IRFW620B Datasheet Preview Page 3

Datasheet Details

Part number:

IRFW620B

Manufacturer:

Fairchild Semiconductor

File Size:

691.33 KB

Description:

N-channel mosfet.
