KSB798 Datasheet - Fairchild Semiconductor

KSB798 PNP Epitaxial Silicon Transistor

KSB798 PNP Epitaxial Silicon Transistor July 2005 KSB798 PNP Epitaxial Silicon Transistor Audio Frequency Power Amplifier Collector Current : IC = -1A Collector Power Dissipation : PC = 2W Marking 7 9 P Y 1 8 W W Weekly code Year code hFE grage SOT-89 1. Base 2. Collector 3. Emitter Absolute Maximum Ratings Symbol www.DataSheet4U.com Ta = 25°C unless otherwise noted Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC.

KSB798_FairchildSemiconductor.pdf

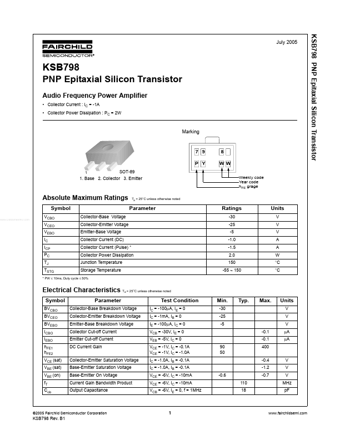

Preview of KSB798 PDF
KSB798 Datasheet Preview Page 2 KSB798 Datasheet Preview Page 3

Datasheet Details

Part number:

KSB798

Manufacturer:

Fairchild Semiconductor

File Size:

455.96 KB

Description:

Pnp epitaxial silicon transistor.
