SCAN18245T Non-Inverting Transceiver

📥 Download Datasheet Datasheet Preview Page 1

Description

SCAN18245T Non-Inverting Transceiver with 3-STATE Outputs October 1991 Revised May 2000 SCAN18245T Non-Inverting Transceiver with 3-STATE Outputs Ge.
The SCAN18245T is a high speed, low-power bidirectional line driver featuring separate data inputs organized into dual 9-bit bytes with byte-oriented.

📥 Download Datasheet

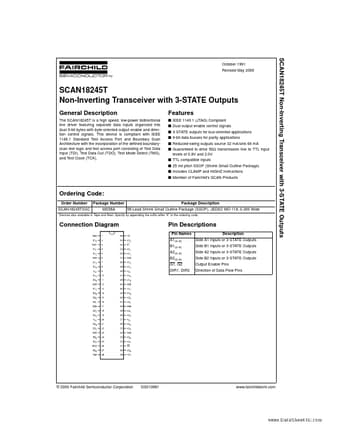

Preview of SCAN18245T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SCAN18245T
Manufacturer
Fairchild Semiconductor
File Size
101.26 KB
Datasheet
SCAN18245T_FairchildSemiconductor.pdf
Description
Non-Inverting Transceiver

Applications

* s 9-bit data busses for parity applications s Reduced-swing outputs source 32 mA/sink 64 mA s Guaranteed to drive 50Ω transmission line to TTL input levels of 0.8V and 2.0V s TTL compatible inputs s 25 mil pitch SSOP (Shrink Small Outline Package) s Includes CLAMP and HIGHZ instructions s Member of
