SSH45N20B

200V N-Channel MOSFET

SSH45N20B Features

* 45A, 200V, RDS(on) = 0.065Ω @VGS = 10 V Low gate charge ( typical 133 nC) Low Crss ( typical 120 pF) Fast switching 100% avalanche tested Improved dv/dt capability D !

* ◀ ▲

* G! TO-3P G DS SSH Series ! S Absolute Maxi

SSH45N20B General Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the a.

SSH45N20B Datasheet (719.55 KB)

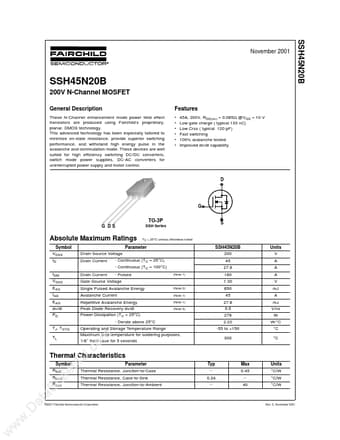

Preview of SSH45N20B PDF

Datasheet Details

Part number:

SSH45N20B

Manufacturer:

Fairchild Semiconductor

File Size:

719.55 KB

Description:

200v n-channel mosfet.
