KA7633 - Fixed Multi-output Regulator

Name: KA7633
SKU: KA7633-389957

Fairchild

📥 Download Datasheet

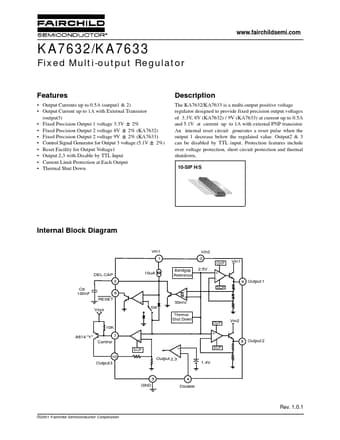

KA7633 Datasheet Preview — Preview of KA7633 PDF

Datasheet Details

Part number	KA7633
Manufacturer	Fairchild
File Size	102.10 KB
Description	Fixed Multi-output Regulator
Datasheet	KA7633_FairchildSemiconductor.pdf

KA7633 Product details

Description

The KA7632/KA7633 is a multi-output positive voltage regulator designed to provide fixed precision output voltages of 3.3V, 8V (KA7632) / 9V (KA7633) at current up to 0.5A and 5.1V at current up to 1A with external PNP transistor.

Features

Output Currents up to 0.5A (output1 & 2).
Output Current up to 1A with External Transistor (output3).
Fixed Precision Output 1 voltage 3.3V ± 2%.
Fixed Precision Output 2 voltage 8V ± 2% (KA7632).
Fixed Precision Output 2 voltage 9V ± 2% (KA7633).
Control Signal Generator for Output 3 voltage (5.1V ± 2%).
Reset Facility for Output Voltage1.
Output 2,3 with Disable by TTL Input.
Current Limit Protection at Each Outp.
