KA76L05

Low Dropout Voltage Regulator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi KA76L05ZTF IC REG LINEAR 5V 100MA TO92-3 DigiKey 0 0
$0

KA76L05 Datasheet (62.50 KB)

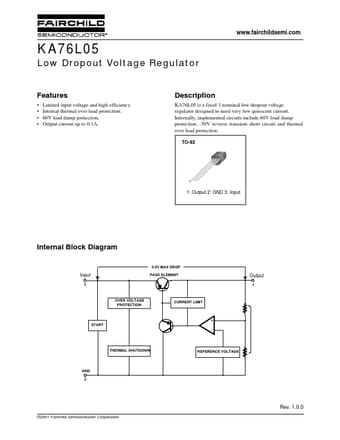

Preview of KA76L05 PDF

Datasheet Details

Part number:

KA76L05

Manufacturer:

Fairchild

File Size:

62.50 KB

Description:

Low dropout voltage regulator.

KA76L05 Features

* Limited input voltage and high efficiency. Internal thermal over load protection. 60V load dump protection. Output current up to 0.1A. Description KA76L05 is a fixed 3-terminal low dropout voltage regulator designed to need very low quiescent current. Interna

KA76L05 General Description

KA76L05 is a fixed 3-terminal low dropout voltage regulator designed to need very low quiescent current. Internally, implemented circuits include 60V load dump protection, -50V reverse transient short circuit and thermal over load protection. TO-92 1 1: Output 2: GND 3: Input Internal Block Diagr.
