NC7SZ00

UHS 2-Input NAND Gate

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi NC7SZ00L6X IC GATE NAND 1CH 2-INP 6MICROPAK DigiKey 4485 2500 units
$0.09

NC7SZ00 Datasheet (80.53 KB)

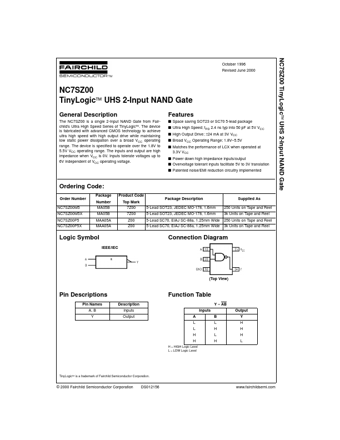

Preview of NC7SZ00 PDF

Datasheet Details

Part number:

NC7SZ00

Manufacturer:

Fairchild

File Size:

80.53 KB

Description:

Uhs 2-input nand gate.

NC7SZ00 Features

* s Space saving SOT23 or SC70 5-lead package s Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC s High Output Drive; ±24 mA at 3V VCC s Broad VCC Operating Range; 1.8V

* 5.5V s Matches the performance of LCX when operated at 3.3V VCC s Power down high impedance inputs/output s Overvoltage

NC7SZ00 General Description

The NC7SZ00 is a single 2-Input NAND Gate from Fairchild’s Ultra High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is s.
