NC7SZ04

TinyLogic UHS Inverter

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi NC7SZ04FHX IC INVERTER 1CH 1-INP 6MICROPAK2 DigiKey 5000 2500 units
$0.09

NC7SZ04 Datasheet (164.21 KB)

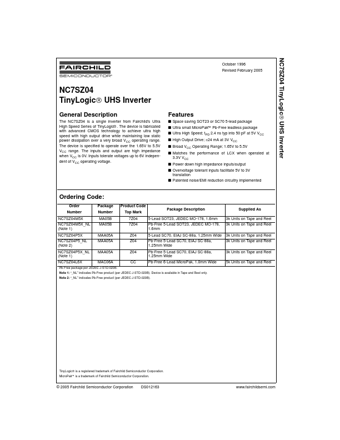

Preview of NC7SZ04 PDF

Datasheet Details

Part number:

NC7SZ04

Manufacturer:

Fairchild

File Size:

164.21 KB

Description:

Tinylogic uhs inverter.

NC7SZ04 Features

* s Space saving SOT23 or SC70 5-lead package s Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC s High Output Drive; ±24 mA at 3V VCC s Broad VCC Operating Range; 1.8V to 5.5V s Matches the performance of LCX when operated at 3.3V VCC s Power down high impedance inputs/output s Overvoltage toler

NC7SZ04 General Description

The NC7SZ04 is a single inverter from Fairchild’s Ultra High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is speci.
