NC7SZ05

TinyLogic UHS Inverter

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi NC7SZ05L6X IC INVERTER 1CH 1-INP 6MICROPAK DigiKey 3660 2500 units
$0.09

NC7SZ05 Datasheet (106.66 KB)

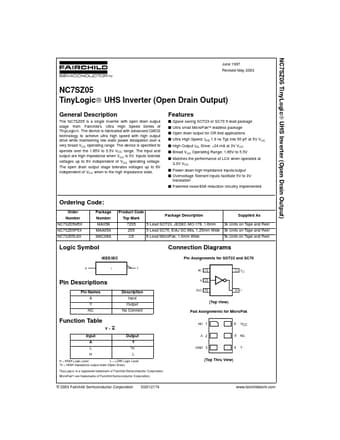

Preview of NC7SZ05 PDF

Datasheet Details

Part number:

NC7SZ05

Manufacturer:

Fairchild

File Size:

106.66 KB

Description:

Tinylogic uhs inverter.
NC7SZ05 TinyLogic UHS Inverter (Open Drain Output) June 1997 Revised May 2003 NC7SZ05 TinyLogic UHS Inverter (Open Drain Output) General Descripti.

NC7SZ05 Features

* s Space saving SOT23 or SC70 5-lead package s Ultra small MicroPak leadless package s Open drain output for OR tied applications s Ultra High Speed; tPD 1.9 ns Typ into 50 pF at 5V VCC s High Output IOL Drive; +24 mA at 3V VCC s Broad VCC Operating Range; 1.65V to 5.5V s Matches the performance of

NC7SZ05 General Description

The NC7SZ05 is a single Inverter with open drain output stage from Fairchild’s Ultra High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operati.
