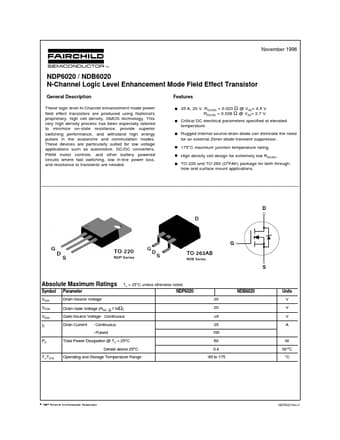

NDP6020 Datasheet, Transistor, Fairchild

NDP6020 Features

• Transistor 35 A, 20 V. RDS(ON) = 0.023 Ω @ VGS= 4.5 V RDS(ON) = 0.028 Ω @ VGS= 2.7 V. Critical DC electrical parameters specified at elevated temperature. Rugged internal source-drain diode can el

PDF File Details

Part number:

NDP6020

Manufacturer:

Fairchild

File Size:

376.54kb

Download:

📄 Datasheet

Description:

N-channel logic level enhancement mode field effect transistor. These logic level N-Channel enhancement mode power field effect transistors are produced using National's proprietary, high cell dens

NDP6020 Application

• Applications such as automotive, DC/DC converters, PWM motor controls, and other battery powered circuits where fast switching, low in-line power lo
