NDP6030L Datasheet, Transistor, Fairchild

NDP6030L Features

  • Transistor 52 A, 30 V. RDS(ON) = 0.0135 Ω @ VGS=10 V RDS(ON) = 0.020 Ω @ VGS=4.5 V. Critical DC electrical parameters specified at elevated temperature. Rugged internal source-drain diode can elim

PDF File Details

Part number:

NDP6030L

Manufacturer:

Fairchild

File Size:

357.87kb

Download:

📄 Datasheet

Description:

N-channel logic level enhancement mode field effect transistor. These N-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell den

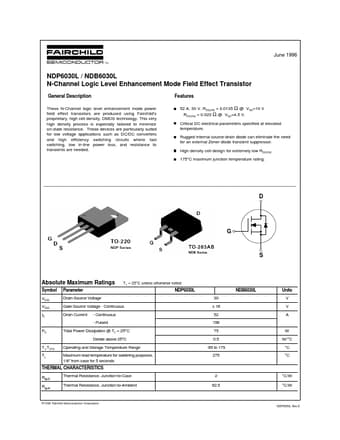

Datasheet Preview: NDP6030L 📥 Download PDF (357.87kb)
Page 2 of NDP6030L Page 3 of NDP6030L

NDP6030L Application

  • Applications such as DC/DC converters and high efficiency switching circuits where fast switching, low in-line power loss, and resistance to transie
