NDP6050L Datasheet, Transistor, Fairchild

NDP6050L Features

  • Transistor 48A, 50V. RDS(ON) = 0.025Ω @ VGS = 5V. Low drive requirements allowing operation directly from logic drivers. VGS(TH) < 2.0V. Critical DC electrical parameters specified at elevated tem

PDF File Details

Part number:

NDP6050L

Manufacturer:

Fairchild

File Size:

66.56kb

Download:

📄 Datasheet

Description:

N-channel logic level enhancement mode field effect transistor. These logic level N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell den

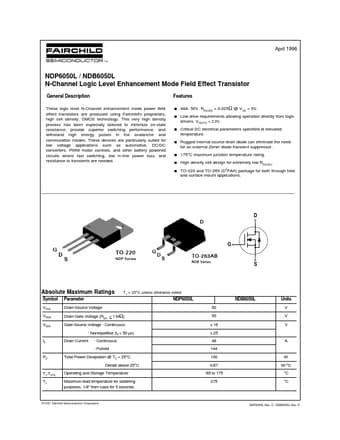

Datasheet Preview: NDP6050L 📥 Download PDF (66.56kb)
Page 2 of NDP6050L Page 3 of NDP6050L

NDP6050L Application

  • Applications such as automotive, DC/DC converters, PWM motor controls, and other battery powered circuits where fast switching, low in-line power lo
