NDS355N - N-Channel Logic Level Enhancement Mode Field Effect Transistor

Fairchild

📥 Download Datasheet

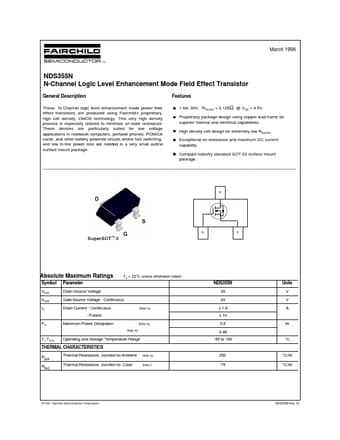

NDS355N Datasheet Preview — Preview of NDS355N PDF

Datasheet Details

Part number: NDS355N
Manufacturer: Fairchild
File Size: 74.69 KB
Datasheet: NDS355N_FairchildSemiconductor.pdf
Description: N-Channel Logic Level Enhancement Mode Field Effect Transistor

NDS355N Product details

Description

These N-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

Features

1.6A, 30V. RDS(ON) = 0.125Ω @ VGS = 4.5V. Proprietary package design using copper lead frame for superior thermal and electrical capabilities. High density cell design for extremely low RDS(ON). Exceptional on-resistance and maximum DC current capability. Compact industry standard SOT-23 surface mount package. _______________________________________________________________________________ D G S Absolute Maximum Ratings Symbol VDSS VGSS ID PD TJ,TSTG Parameter Drain-Source Voltage T A = 25°.
