FP6181

380KHz Step-Down Converter

FP6181 Features

* 2A Output Current Adjustable Soft-Start 0.18Ω Internal Power MOSFET Switch Stable with Low ESR Output Ceramic Capacitors Up to 95% Efficiency 23μA Shutdown Mode Current Fixed 380KHz frequency Thermal Shutdown Cycle-by-Cycle Over

FP6181 General Description

The FP6181 is a buck regulator with a built in internal power MOSFET. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. The device includes cycle-by-cy.

FP6181 Datasheet (442.96 KB)

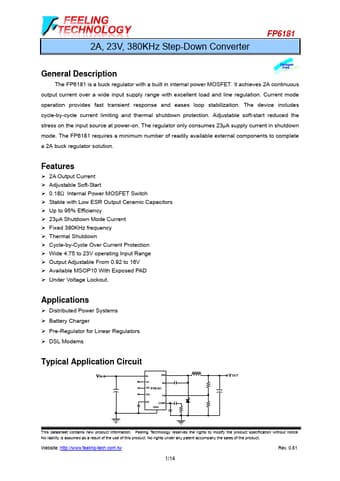

Preview of FP6181 PDF

Datasheet Details

Part number:

FP6181

Manufacturer:

Feeling Technology

File Size:

442.96 KB

Description:

380khz step-down converter.
