FP6185 - 380KHz Step-Down Converter

FP6185 Description

FP6185 2A, 23V, 380KHz Step-Down Converter General .
The FP6185 is a buck regulator with a built-in internal power MOSFET.

FP6185 Features

* 2A Output Current Adjustable Soft-Start 0.18Ω Internal High Side Power MOSFET Switch Stable with Low ESR Output Ceramic Capacitors Up to 95% Efficiency 23μA Shutdown Mode Current Fixed 380KHz Frequency Thermal Shutdown Cycle-by-

FP6185 Applications

* Distributed Power Systems
* Battery Charger
* Pre-Regulator for Linear Regulators
* DSL Modems Typical Application Circuit VOUT 1 2 3 8 7 BS IN SS EN VIN EN FP6185 SW COMP 6 4 GND FB 5 This datasheet contains new product information. Feeling Technology reserves the righ

📥 Download Datasheet

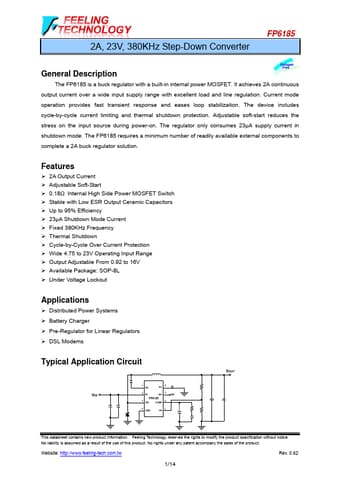

Preview of FP6185 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FP6185
Manufacturer
Feeling Technology
File Size
418.79 KB
Datasheet
FP6185-FeelingTechnology.pdf
Description
380KHz Step-Down Converter
