FP6183

Step-Down Converter

FP6183 Features

* 2A Output Current 0.2Ω internal Power MOSFET Switch Stable with Low ESR Output Ceramic Capacitors Up to 95% Efficiency 23µA Shutdown Mode Current Fixed 210KHz Frequency Thermal Shutdown Cycle-by-Cycle Over Current Protection Wide 4.75

FP6183 General Description

The FP6183 is a buck regulator with a built in internal power MOSFET. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. The device includes cycle-by-cy.

FP6183 Datasheet (757.78 KB)

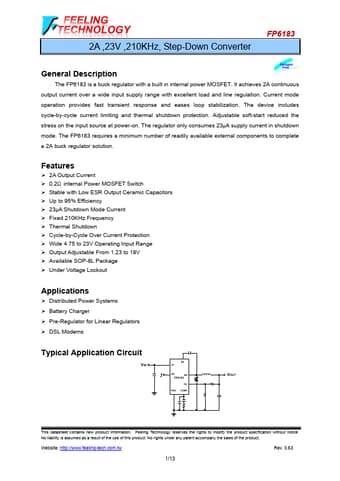

Preview of FP6183 PDF

Datasheet Details

Part number:

FP6183

Manufacturer:

Feeling Technology

File Size:

757.78 KB

Description:

Step-down converter.
