FP6182 Datasheet - Feeling Technology

380KHz Step-Down Converter

FP6182 Features

* 2A Output Current

* 0.22Ω Internal Power MOSFET Switch

* Stable with Low ESR Output Ceramic Capacitors Up to 95% Efficiency

* 25μA Shutdown Mode Current

* Fixed 380KHz Frequency

* Thermal Shutdown

* Cycle-by-Cycle Over Current Protection

* Wide 4.75 to 23V Operating

FP6182 General Description

The FP6182 is a buck regulator with a built in internal power MOSFET. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. The device includes cycle-by-cy.

FP6182 Datasheet (617.28 KB)

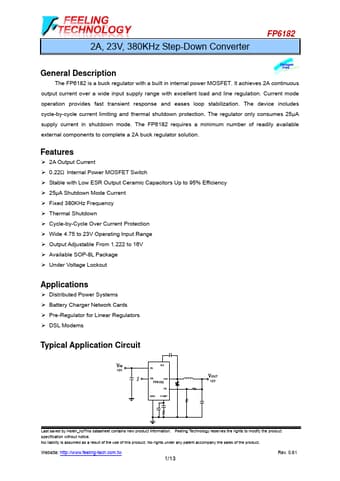

FP6182 Datasheet Preview — Preview of FP6182 PDF

Datasheet Details

Part number:

FP6182

Manufacturer:

Feeling Technology

File Size:

617.28 KB

Description:

380khz step-down converter.
