FP6186

1.4MHz Step-Down Converter

Feeling Technology

FP6186 Features

* ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ 2A Output Current Adjustable Soft-Start 0.2Ω Internal High Side Power MOSFET Switch Stable with Low ESR Output Ceramic Capacitors Up to 90% Efficiency 25μA Shutdown Mode Current Fixed 1.4MHz Frequency Thermal Shutdown Cycle-by-Cycle Over Current Protection Wide 4.75 to 23V Op

FP6186 General Description

The FP6186 is a buck regulator with a built-in internal power MOSFET. It can provide 2A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. This device includes cycle-b.

FP6186 Datasheet (717.78 KB)

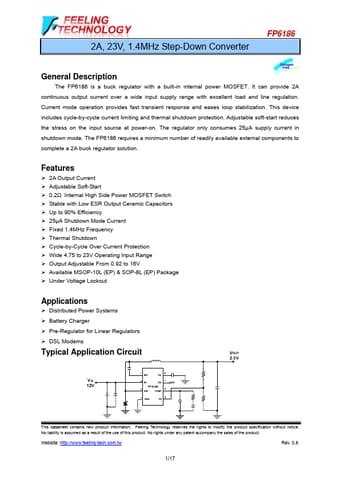

FP6186 Datasheet Preview — Preview of FP6186 PDF

Datasheet Details

Part number:

FP6186

Manufacturer:

Feeling Technology

File Size:

717.78 KB

Description:

1.4mhz step-down converter.
