FP6180 - 380KHz Step-Down Converter

FP6180 Description

FP6180 3A, 23V, 380KHz Step-Down Converter General .
The FP6180 is a buck regulator with a built in internal power MOSFET.

FP6180 Features

* 3A Output Current Adjustable Soft-Start 0.1ΩInternal Power MOSFET Switch Stable with Low ESR Output Ceramic Capacitors Up to 95% Efficiency 20μA Shutdown Mode Current Fixed 380KHz Frequency Thermal Shutdown Cycle-by-Cycle Over C

FP6180 Applications

* Distributed Power Systems
* Battery Charger
* Pre-Regulator for Linear Regulators Typical Application Circuit VIN IN SW BS EN SS VOUT FP6180 FB COMP GND This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification witho

📥 Download Datasheet

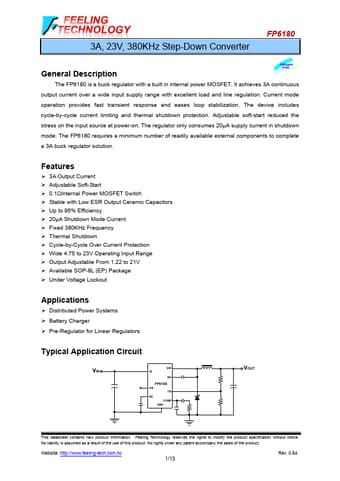

Preview of FP6180 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FP6180
Manufacturer
Feeling Technology
File Size
1.61 MB
Datasheet
FP6180-FeelingTechnology.pdf
Description
380KHz Step-Down Converter
