1N914A, 1N914 - SMALL SIGNAL SWITCHING DIODE

GME

1N914A Description

BL G SMALL SIGNAL SWITCHING DIODE .

1N914A Features

* ƺ Glass sealed envelope. (MSD) ƺ VRM=100V guaranteed ƺ High reliability MECHANICAL DATA ƺ Case: DO-35, glass case ƺ Polarity: Color band denotes cathode ƺ Weight: 0.004 ounces, 0.13 grams 1N914,1N914A,1N914B REVERSE VOLTAGE: 75 V CURRENT 75 mA DO - 35 Dimensions in millimeters MAXIMUM RATINGS (Rat

📥 Download Datasheet

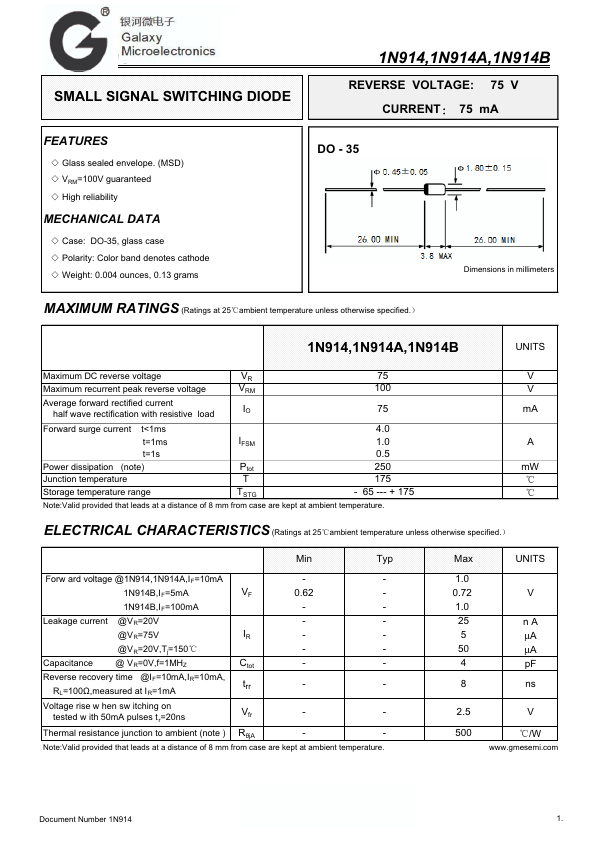

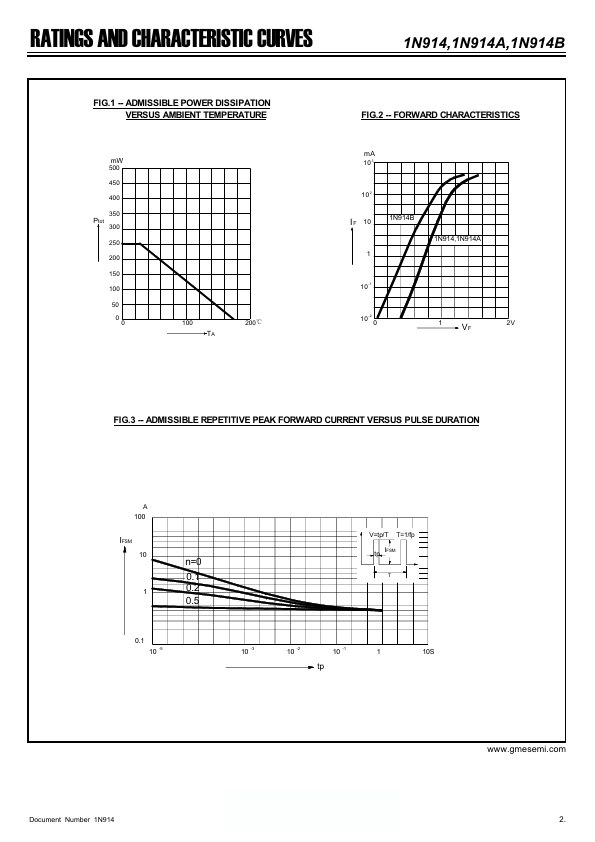

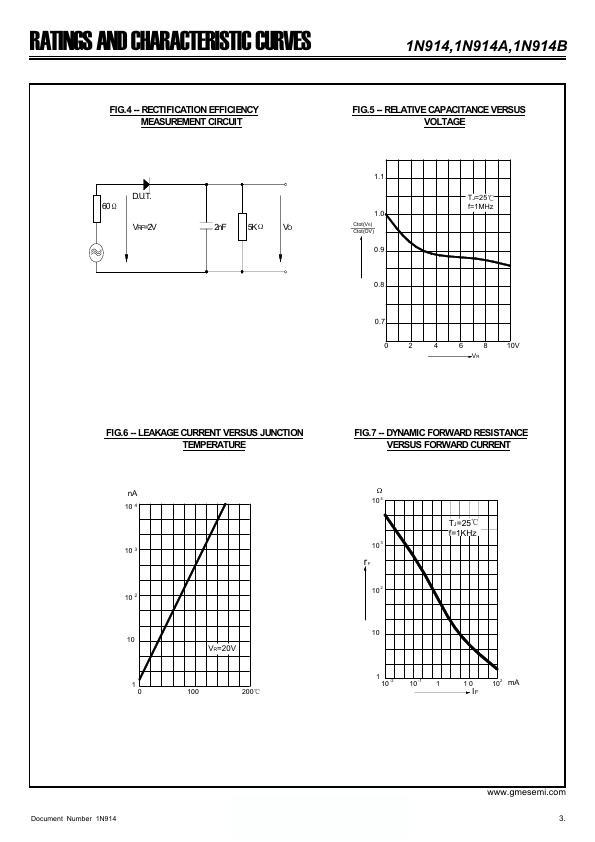

1N914A Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N914A, 1N914. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: 1N914A, 1N914
Manufacturer: GME
File Size: 92.52 KB
Datasheet: 1N914-GME.pdf
Description: SMALL SIGNAL SWITCHING DIODE
Note: This datasheet PDF includes multiple part numbers: 1N914A, 1N914.
Please refer to the document for exact specifications by model.
