GT400P10 Datasheet, Mosfet, GOFORD

GT400P10 Features

• Mosfet l VDS l ID (at VGS = -10V) l RDS(ON) (at VGS = -10V) l RDS(ON) (at VGS = -4.5V) l 100% Avalanche Tested l RoHS Compliant -100V -35A < 35mΩ < 40mΩ Schematic diagram Application l Powe

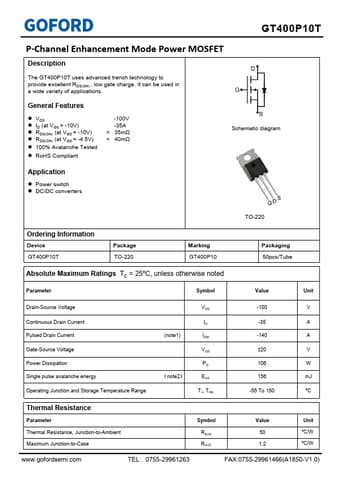

PDF File Details

Part number:

GT400P10

Manufacturer:

GOFORD

File Size:

927.05kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The GT400P10T uses advanced trench technology to provide excellent RDS(ON) , low gate charge. It can be used in a wide variety of ap

GT400P10 Application

• Applications General Features l VDS l ID (at VGS = -10V) l RDS(ON) (at VGS = -10V) l RDS(ON) (at VGS = -4.5V) l 100% Avalanche Tested l RoHS Compl
