GS-065-018-2-L - 650V E-mode GaN transistor

GaN Systems

📥 Download Datasheet

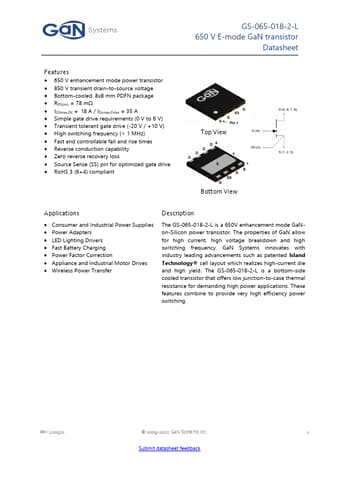

GS-065-018-2-L Datasheet Preview — Preview of GS-065-018-2-L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: GS-065-018-2-L
Manufacturer: GaN Systems
File Size: 865.59 KB
Datasheet: GS-065-018-2-L-GaNSystems.pdf
Description: 650V E-mode GaN transistor

GS-065-018-2-L Product details

Description

The GS-065-018-2-L is a 650V enhancement mode GaNon-Silicon power transistor.

Features

650 V enhancement mode power transistor.
850 V transient drain-to-source voltage.
Bottom-cooled, 8x8 mm PDFN package.
RDS(on) = 78 mΩ.
IDSmax,DC = 18 A / IDsmax,Pulse = 35 A.
Simple gate drive requirements (0 V to 6 V).
Transient tolerant gate drive (-20 V / +10 V).
High switching frequency (> 1 MHz).
Fast and controllable fall and rise times.
Reverse conduction capability.
Zero reverse recovery l.
