GS-065-018-6-LR, 700 V E-mode GaN transistor

.
Consumer and Industrial Power Supplies. Power Adapters. LED Lighting Drivers. Fast Battery Charging. Po.

datasheet Preview Page 1 from Datasheet4u.com

GS-065-018-6-LR-GaNSystems.pdf

GS-065-018-6-LR Datasheet Preview — Preview of GS-065-018-6-LR PDF

Datasheet Details

Part number:

GS-065-018-6-LR

Manufacturer:

GaN Systems

File Size:

874.36 KB

Description:

700 V E-mode GaN transistor

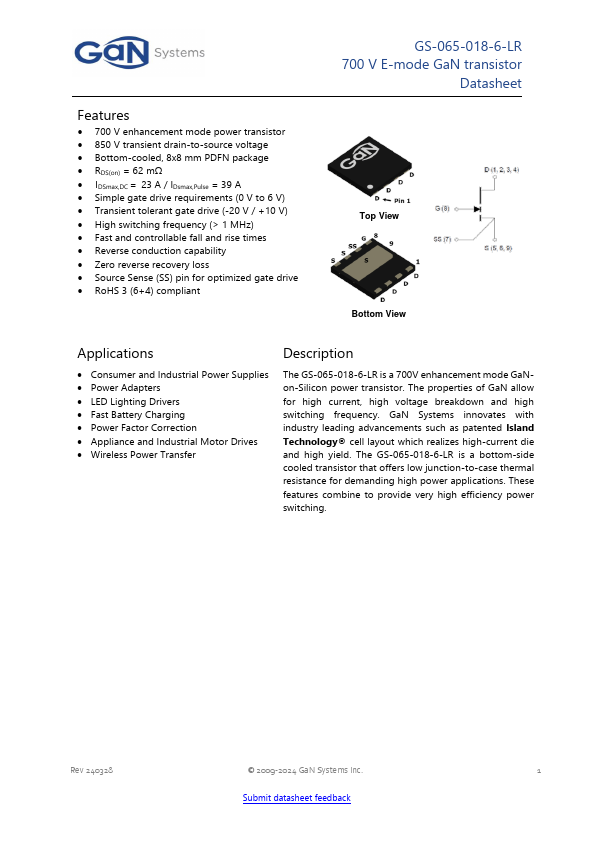

Features

* 700 V enhancement mode power transistor
* 850 V transient drain-to-source voltage
* Bottom-cooled, 8x8 mm PDFN package
* RDS(on) = 62 mΩ
* IDSmax,DC = 23 A / IDsmax,Pulse = 39 A
* Simple gate drive requirements (0 V to 6 V)
* Transient tolera
