G2009 4+2CH serial input motor driver

G2009 Description

Global Mixed-mode Technology Inc.G2009 4+2CH serial input motor driver IC for DSC .
G2009 is a 4+2-channel H-Bridge motor drivers IC for the digital camera and so on.

G2009 Features

* Built in 3 full-swing/constant voltage drivers switched by serial control with brake function.
* Built in 1 constant current drivers for shutter or IRIS.
* Low on-resistance (1.2Ω, sum of on-resistance of upside and bottom side).
* Output current：Iout

📥 Download Datasheet

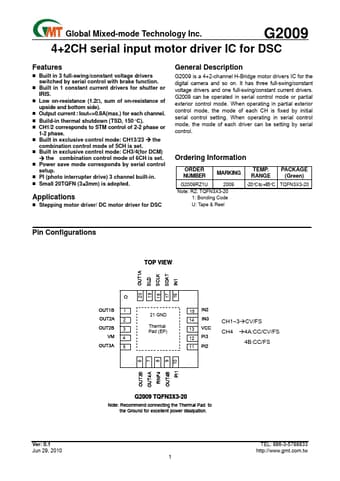

Preview of G2009 PDF

Datasheet Details

Part number
G2009
Manufacturer
Global Mixed-mode Technology
File Size
84.10 KB
Datasheet
G2009-GlobalMixedmodeTechnology.pdf
Description
4+2CH serial input motor driver
