HM16N50 - 500V N-Channel MOSFET

H&M Semiconductor

📥 Download Datasheet

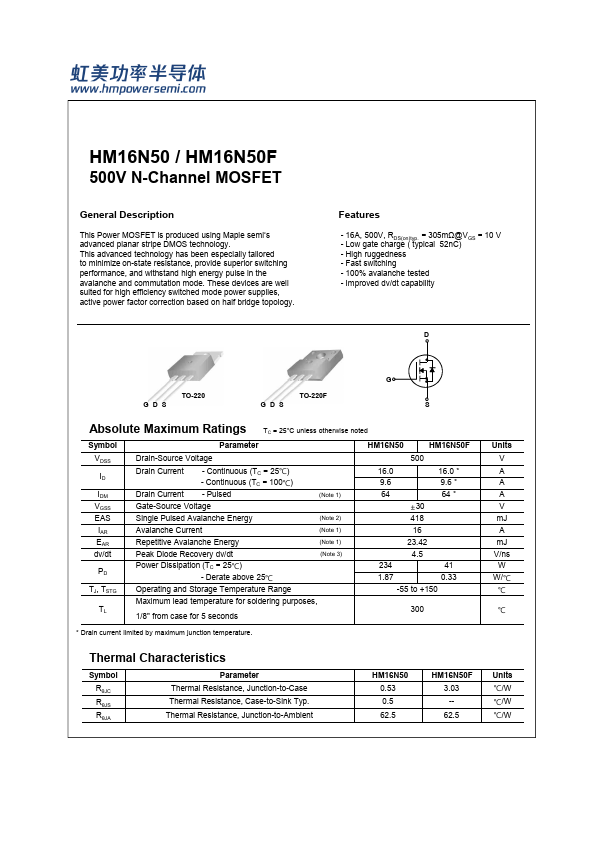

HM16N50 Datasheet Preview — Preview of HM16N50 PDF

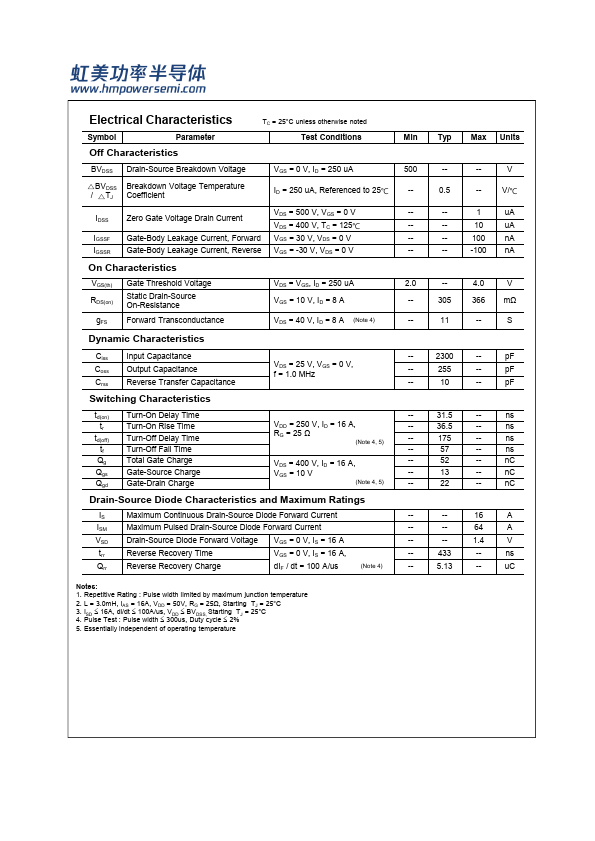

datasheet Preview Page 2

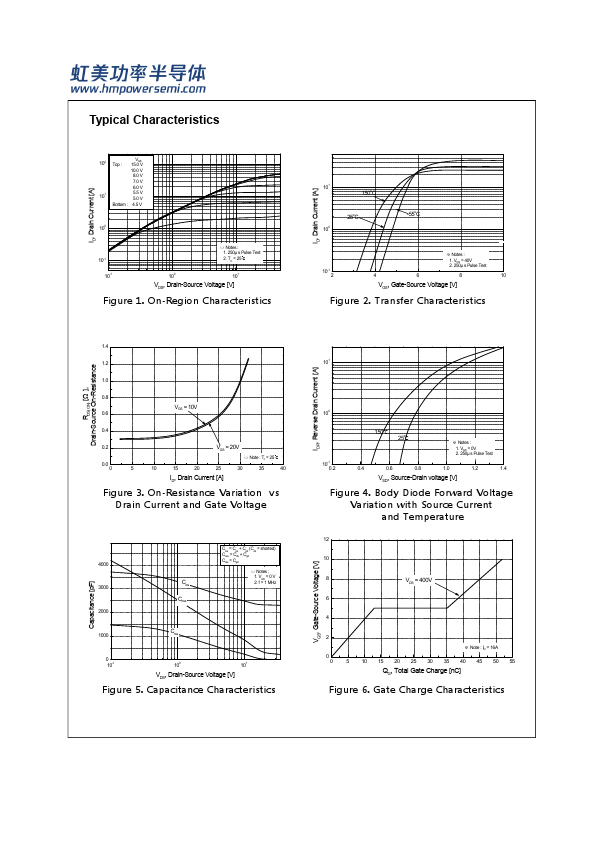

datasheet Preview Page 3

Datasheet Details

Part number	HM16N50
Manufacturer	H&M Semiconductor
File Size	921.04 KB
Description	500V N-Channel MOSFET
Datasheet	HM16N50-HMSemiconductor.pdf

HM16N50 Product details

Description

This Power MOSFET is produced using Maple semi‘s advanced planar stripe DMOS technology.

Features

- 16A, 500V, RDS(on)typ. = 305mΩ@VGS = 10 V - Low gate charge ( typical 52nC) - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability D GDS TO-220 GDS TO-220F G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL Parameter Drain-Source Voltage Drain Current Drain Current - Continuous (TC = 25℃) - Continuous (TC = 100℃) - Pulsed (Note 1) Gate-Source Voltage Single Pulsed Avalanche Energy.
