HM16N50F, HM16N50 Datasheet - H&M Semiconductor

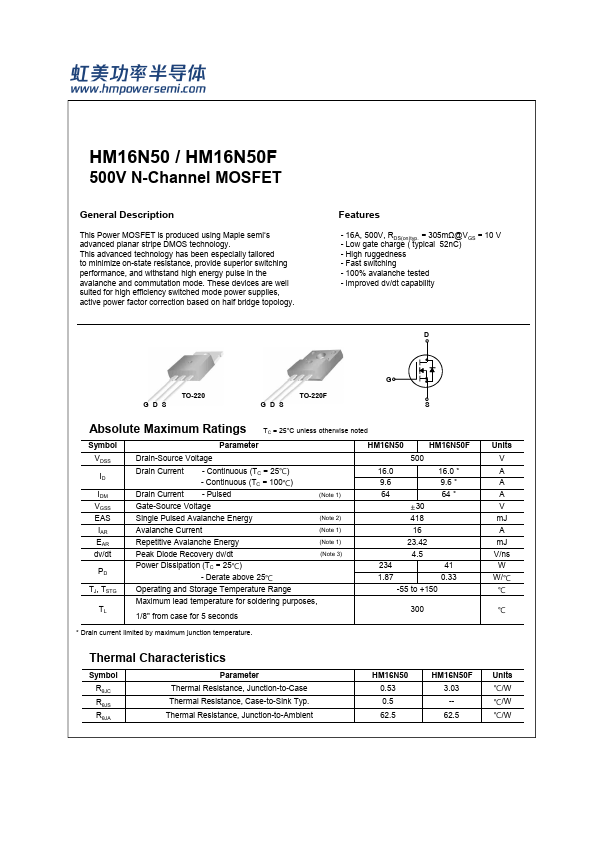

HM16N50F 500V N-Channel MOSFET

This Power MOSFET is produced using Maple semi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices.

HM16N50F Features

* - 16A, 500V, RDS(on)typ. = 305mΩ@VGS = 10 V - Low gate charge ( typical 52nC) - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability D GDS TO-220 GDS TO-220F G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt

HM16N50-HMSemiconductor.pdf

This datasheet PDF includes multiple part numbers: HM16N50F, HM16N50. Please refer to the document for exact specifications by model.

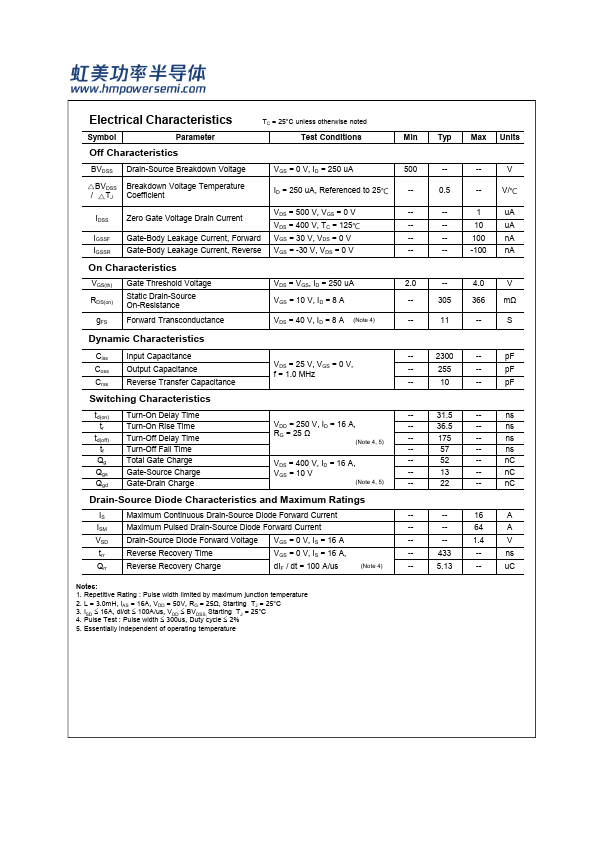

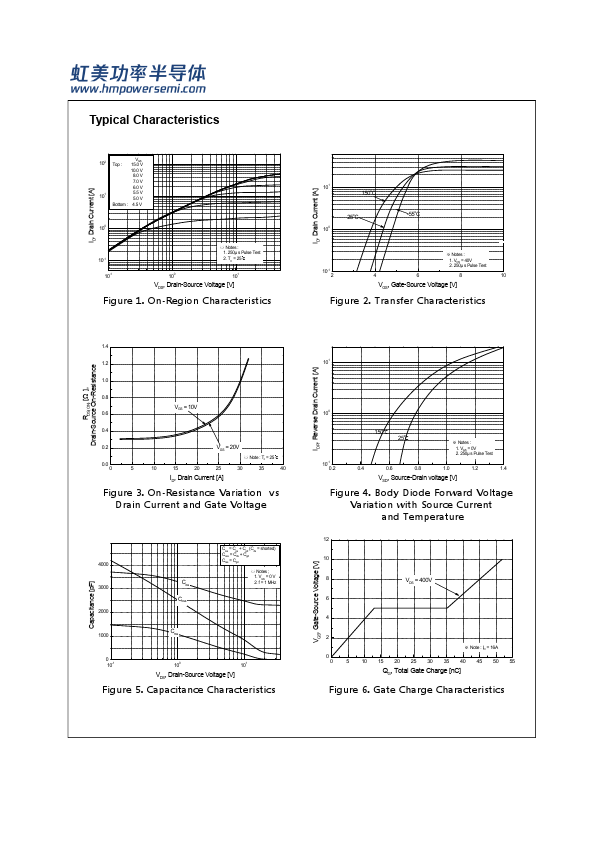

HM16N50F Datasheet Preview Page 2 HM16N50F Datasheet Preview Page 3

Datasheet Details

Part number:

HM16N50F, HM16N50

Manufacturer:

H&M Semiconductor

File Size:

921.04 KB

Description:

500v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: HM16N50F, HM16N50.
Please refer to the document for exact specifications by model.
