HM2300PR - N-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

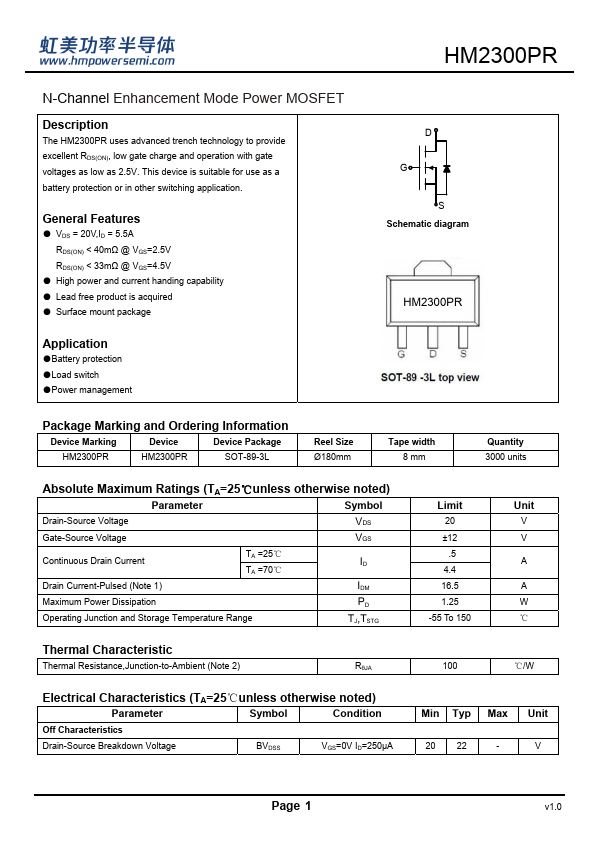

HM2300PR N-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM2300PR

Datasheet Details

Part number	HM2300PR
Manufacturer	H&M Semiconductor
File Size	383.97 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM2300PR Datasheet

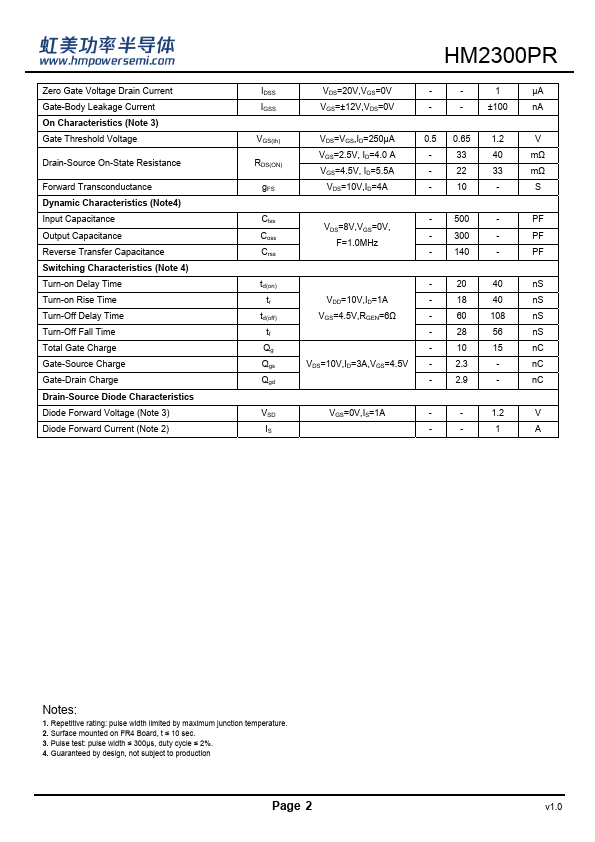

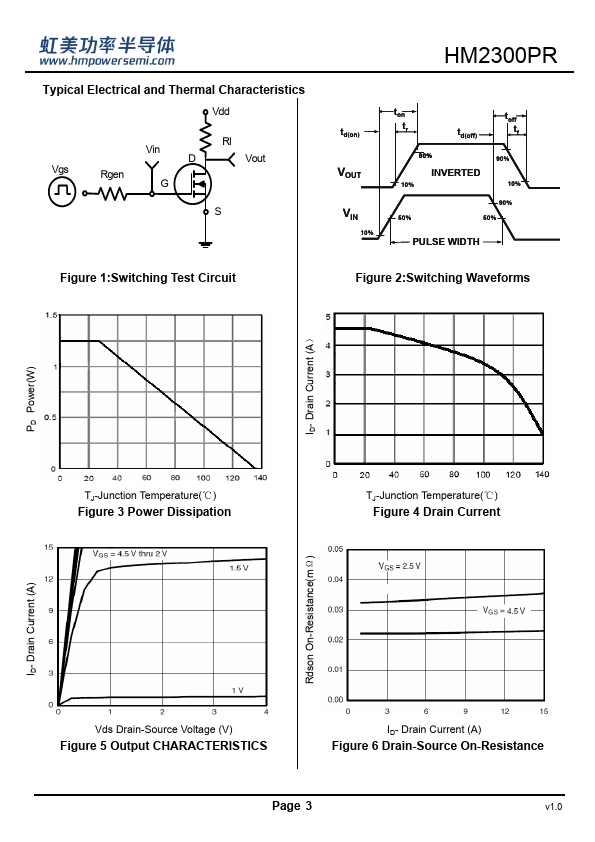

Additional preview pages of the HM2300PR datasheet.

Product details

Description

The HM2300PR uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

VDS = 20V,ID = 5.5A RDS(ON) < 40mΩ @ VGS=2.5V RDS(ON) < 33mΩ @ VGS=4.5V.
High power and current handing capability.
Lead free product is acquired.
Surface mount package.
