HM25P04K - P-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

HM25P04K Description

HM25P04K P-Channel Enhancement Mode Power MOSFET .
The HM25P04K uses advanced trench technology to provide excellent RDS(ON), This device is suitable for use as a load switch or in PWM applications.

HM25P04K Features

* VDS = -40V,ID = -25A RDS(ON)

📥 Download Datasheet

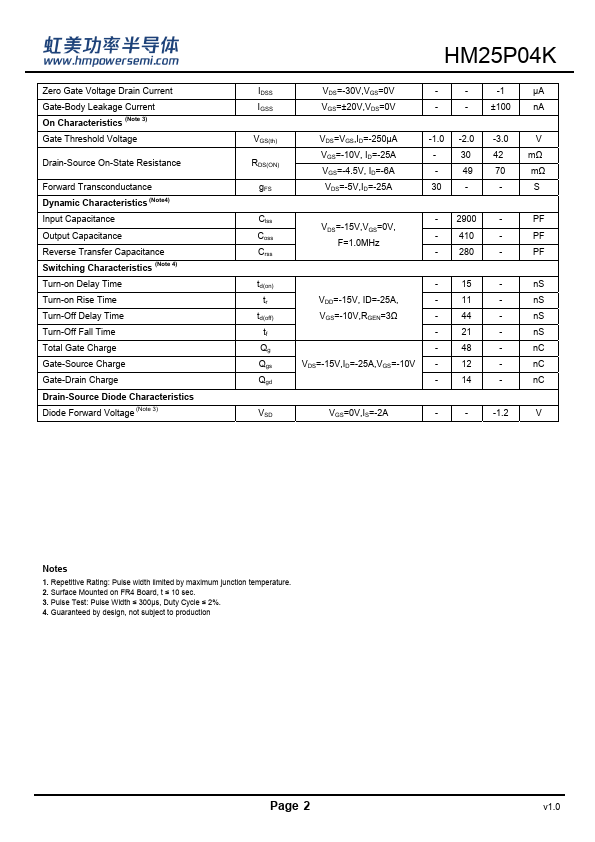

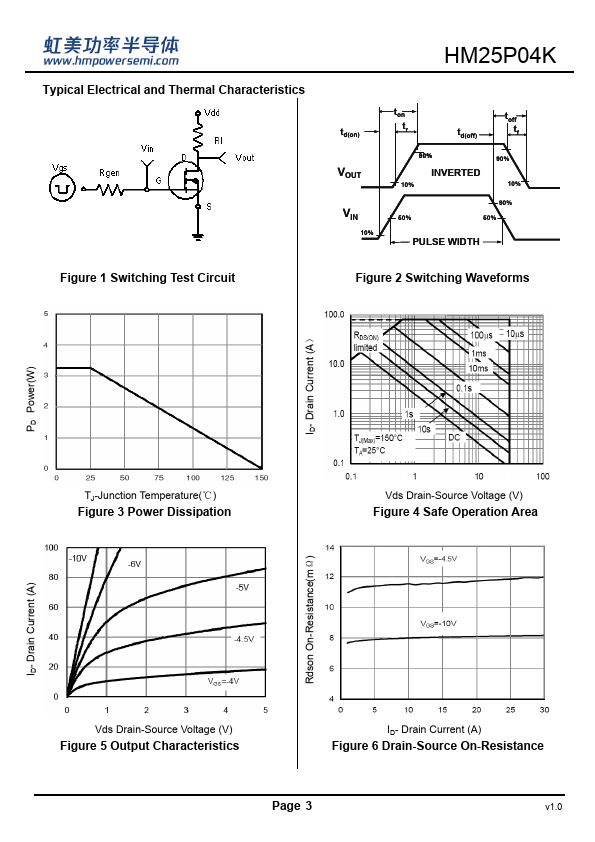

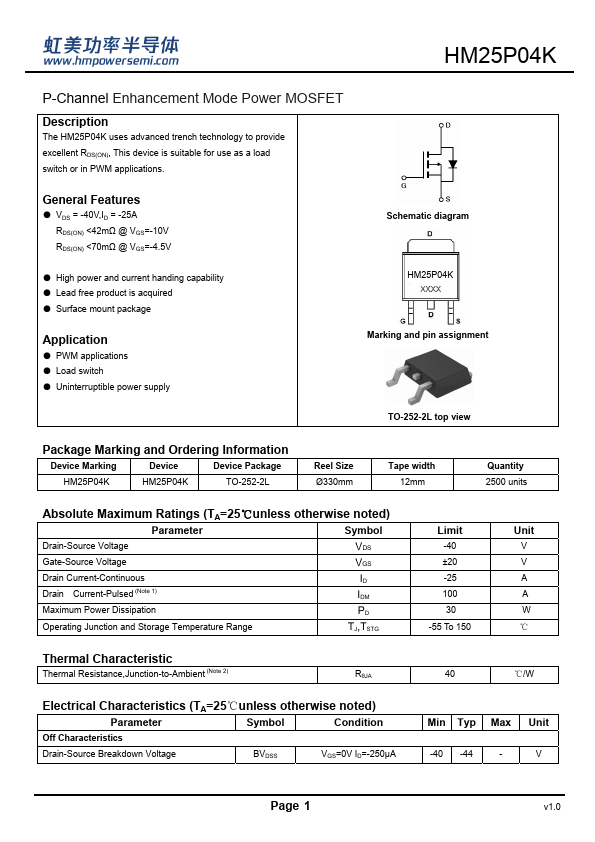

HM25P04K Datasheet Preview — Preview of HM25P04K PDF

Datasheet Details

Part number: HM25P04K
Manufacturer: H&M Semiconductor
File Size: 565.56 KB
Datasheet: HM25P04K-HMSemiconductor.pdf
Description: P-Channel Enhancement Mode Power MOSFET
