HM40SDN02Q, Dual Asymmetric N-Channel Enhancement Mode MOSFET

HM40SDN02Q HM40SDN02Q Dual Asymmetric N-Channel Enhancement Mode MOSFET * .
This device uses advanced trench technology to provide excellent RDSON and low gate charge.

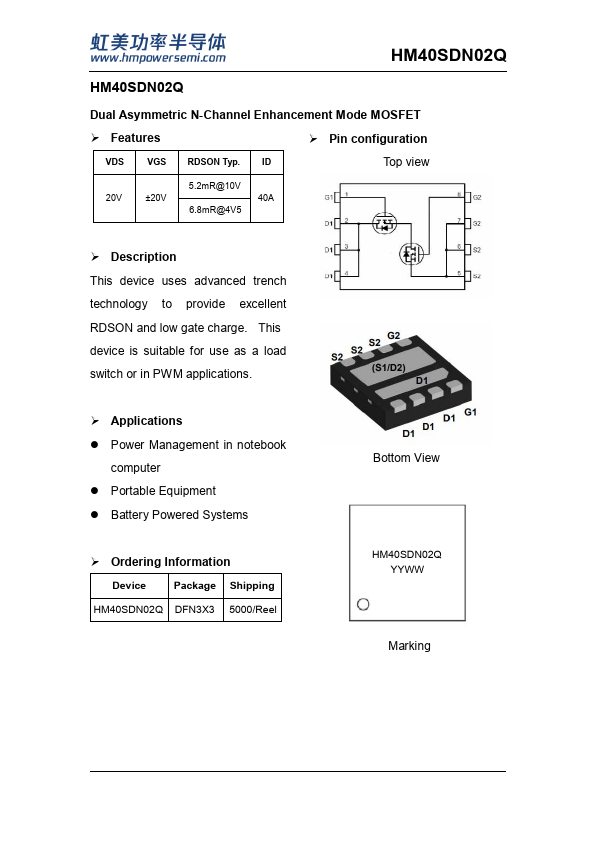

datasheet Preview Page 1 from Datasheet4u.com

HM40SDN02Q-HMSemiconductor.pdf

HM40SDN02Q Datasheet Preview — Preview of HM40SDN02Q PDF

Datasheet Details

Part number:

HM40SDN02Q

Manufacturer:

H&M Semiconductor

File Size:

627.53 KB

Description:

Dual Asymmetric N-Channel Enhancement Mode MOSFET

Features

* Pin configuration VDS VGS RDSON Typ. ID Top view 5.2mR@10V 20V ±20V 40A 6.8mR@4V5

Applications

* Applications
* Power Management in notebook computer
* Portable Equipment
* Battery Powered Systems
* Ordering Information Device Package Shipping HM40SDN02Q DFN3X3 5000/Reel Bottom View HM40SDN02Q YYWW Marking HM40SDN02Q

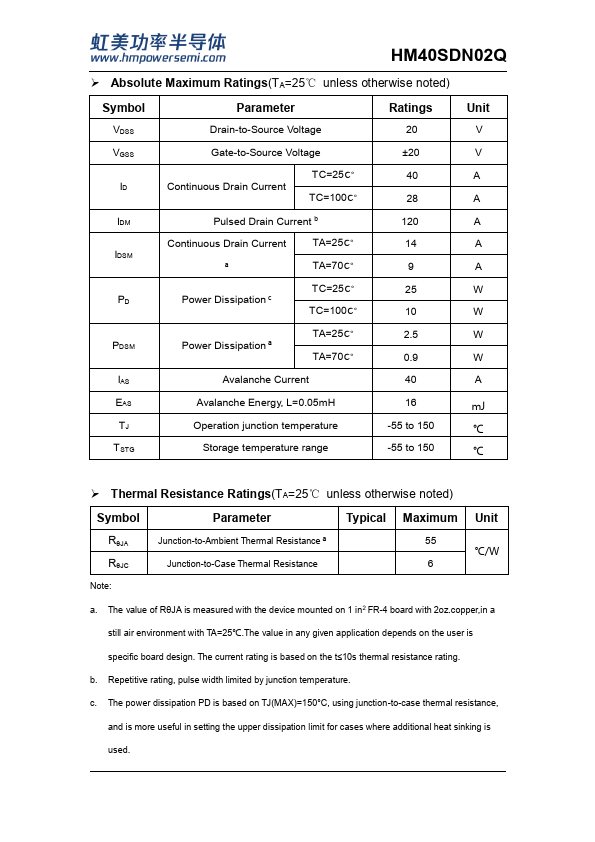

* Absolute Maximum Ratings(TA=25℃ unless ot
