HMS200N03D Datasheet - H&M Semiconductor

HMS200N03D N-Channel Super Trench Power MOSFET

The HMS200N03D uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching.

HMS200N03D Features

* VDS =30V,ID =200A RDS(ON)=1.0mΩ (typical) @ VGS=10V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

* DC/DC Converter

* Ideal for high-frequency switc

HMS200N03D-HMSemiconductor.pdf

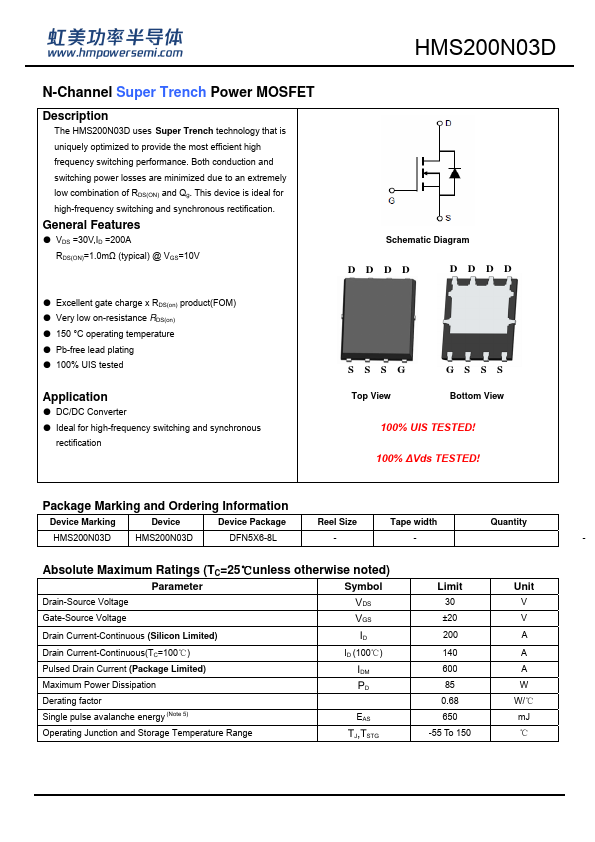

Preview of HMS200N03D PDF

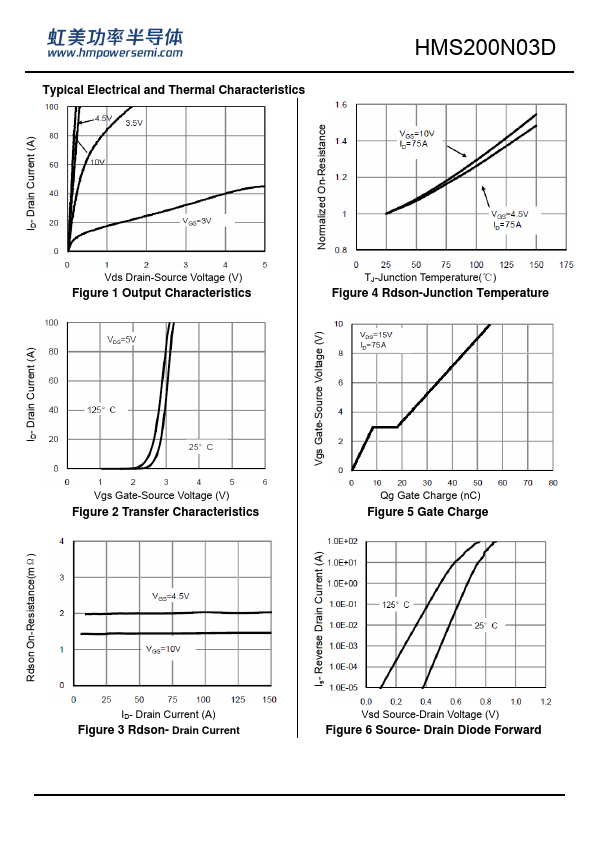

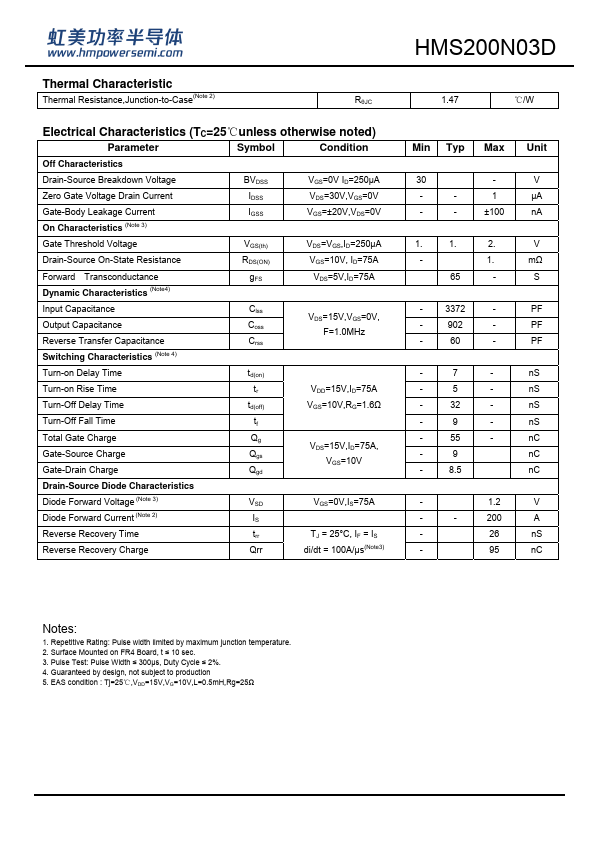

HMS200N03D Datasheet Preview Page 2 HMS200N03D Datasheet Preview Page 3

Datasheet Details

Part number:

HMS200N03D

Manufacturer:

H&M Semiconductor

File Size:

459.15 KB

Description:

N-channel super trench power mosfet.
