HMS4296, N-Channel Super Trench Power MOSFET

HMS4296 N-Channel Super Trench Power MOSFET .
The +06 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

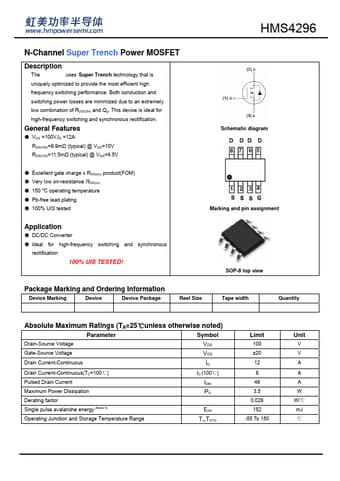

datasheet Preview Page 1 from Datasheet4u.com

HMS4296-HMSemiconductor.pdf

HMS4296 Datasheet Preview — Preview of HMS4296 PDF

Datasheet Details

Part number:

HMS4296

Manufacturer:

H&M Semiconductor

File Size:

455.86 KB

Description:

N-Channel Super Trench Power MOSFET

Features

* VDS =100V,ID =12A RDS(ON)=9.9mΩ (typical) @ VGS=10V RDS(ON)=11.5mΩ (typical) @ VGS=4.5V Schematic diagram
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 150 °C operating temperature
* Pb-free lead plating
* 100% UIS tested Marking and p
