HMS85N04D N-Channel Super Trench Power MOSFET

The HMS85N04D uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching .

HMS85N04D Features

* VDS =40V,ID =85A RDS(ON)=2.7mΩ (typical) @ VGS=10V RDS(ON)=3.8mΩ (typical) @ VGS=4.5V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

* DC/DC Converter

HMS85N04D-HMSemiconductor.pdf

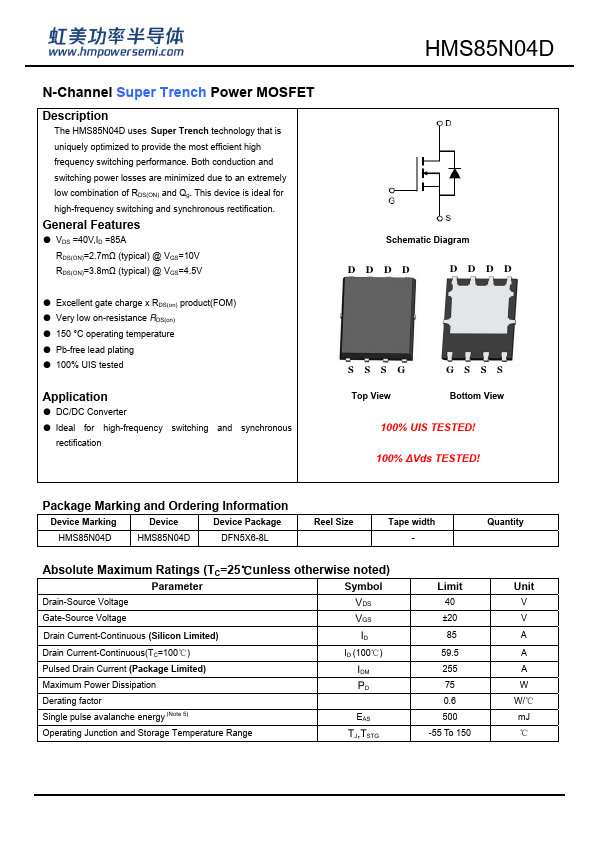

HMS85N04D Datasheet Preview — Preview of HMS85N04D PDF

Datasheet Details

Part number:

HMS85N04D

Manufacturer:

H&M Semiconductor

File Size:

655.42 KB

Description:

N-channel super trench power mosfet.
