HMS85N10 Datasheet - H&M Semiconductor

HMS85N10 N-Channel Super Trench II Power MOSFET

The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency.

HMS85N10 Features

* VDS =V,ID =85A RDS(ON)=7.0mΩ , typical (TO-220)@ VGS=10V RDS(ON)=7.0mΩ , typical (TO-263)@ VGS=10V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-220

HMS85N10-HMSemiconductor.pdf

Preview of HMS85N10 PDF

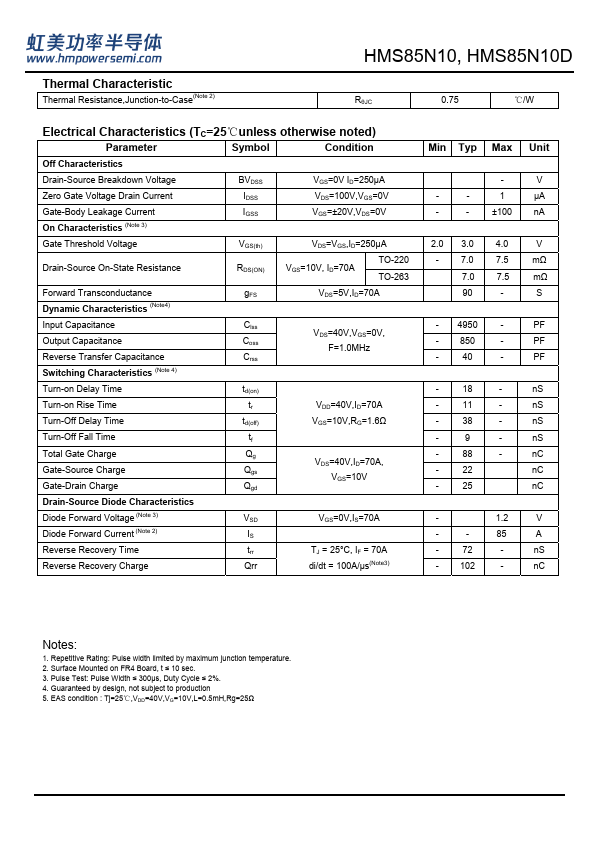

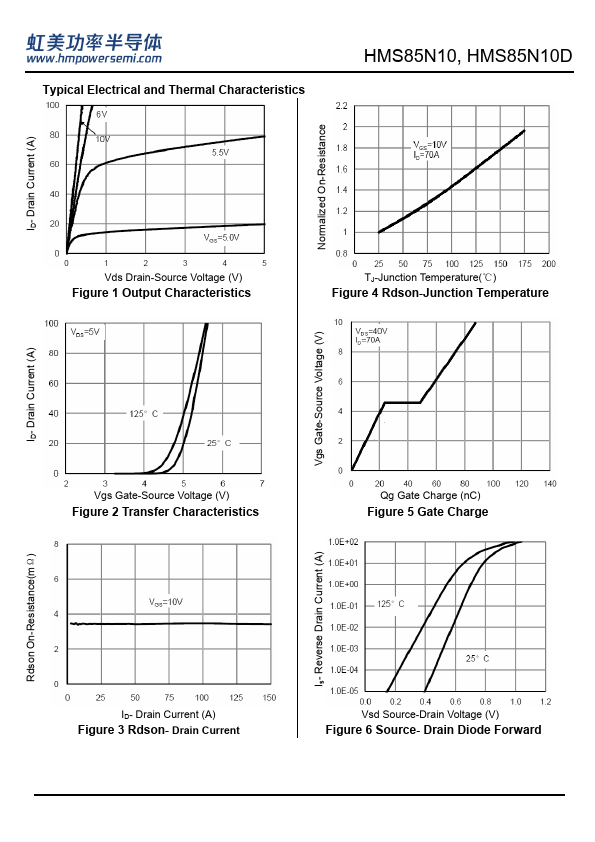

HMS85N10 Datasheet Preview Page 2 HMS85N10 Datasheet Preview Page 3

Datasheet Details

Part number:

HMS85N10

Manufacturer:

H&M Semiconductor

File Size:

727.01 KB

Description:

N-channel super trench ii power mosfet.
