HMS85N10G, HMS85N10K - N-Channel Super Trench II Power MOSFET

HMS85N10G Description

HMS85N10K, HMS85N10G N-Channel Super Trench II Power MOSFET .
The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance.

HMS85N10G Features

* VDS =100V,ID =85A RDS(ON)=7.0mΩ , typical (TO-220)@ VGS=10V RDS(ON)=7.0mΩ , typical (TO-263)@ VGS=10V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-252

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HMS85N10G, HMS85N10K. Please refer to the document for exact specifications by model.

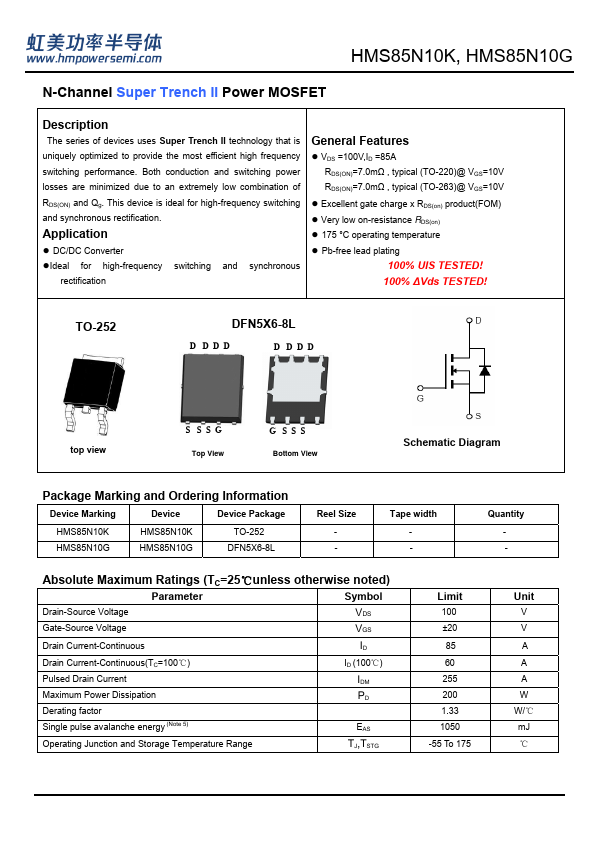

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMS85N10G, HMS85N10K
Manufacturer
H&M Semiconductor
File Size
1.30 MB
Datasheet
HMS85N10K-HMSemiconductor.pdf
Description
N-Channel Super Trench II Power MOSFET
Note
This datasheet PDF includes multiple part numbers: HMS85N10G, HMS85N10K.
Please refer to the document for exact specifications by model.
