Description

HMS85N10K, HMS85N10G N-Channel Super Trench II Power MOSFET .
The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance.

📥 Download Datasheet

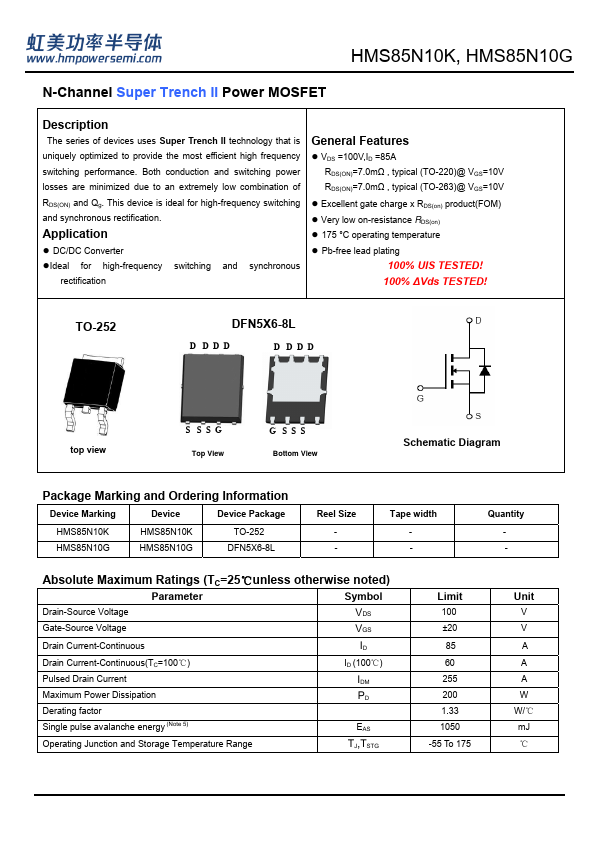

HMS85N10K Datasheet Preview — Preview of HMS85N10K PDF

Datasheet Specifications

Part number: HMS85N10K
Manufacturer: H&M Semiconductor
File Size: 1.30 MB
Datasheet: HMS85N10K-HMSemiconductor.pdf
Description: N-Channel Super Trench II Power MOSFET

Features

* VDS =100V,ID =85A RDS(ON)=7.0mΩ , typical (TO-220)@ VGS=10V RDS(ON)=7.0mΩ , typical (TO-263)@ VGS=10V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-252
