High dense cell design for extremely low RDS(ON) .
Rugged and reliable .
Lead free product is acquired .
SOT-23 Package .
Marking Code: A5 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
HPM2305
P-Channel MOSFETs

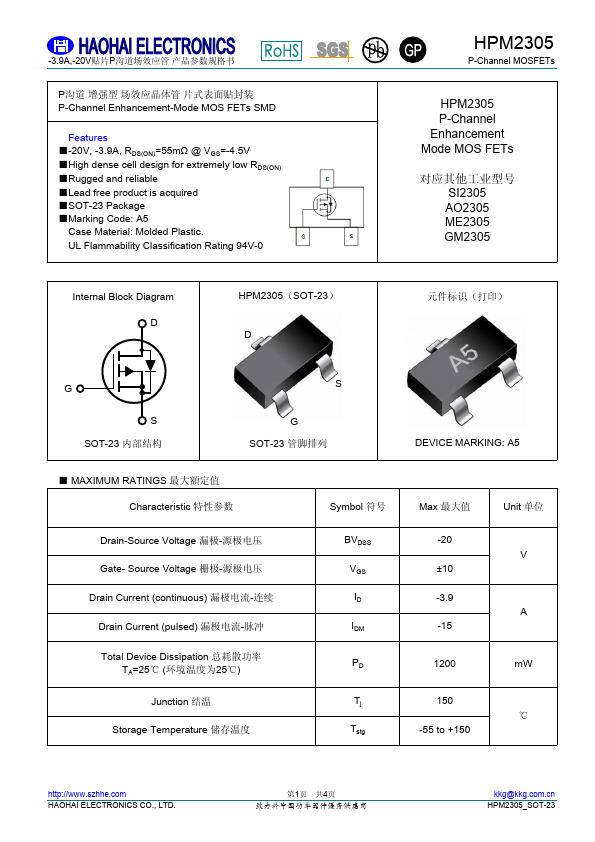

HPM2305 P-Channel Enhancement Mode MOS FETs
SI2305 AO2305 ME2305 GM2305
Internal Block Diagram D
HPM2305（SOT-23） D
（）
G
S SOT-23
S
G SOT-23
.
