HLB121A - NPN Triple Diffused Planar Type High Voltage Transistor

This page provides the datasheet information for the HLB121A, a member of the HLB121A-HI NPN Triple Diffused Planar Type High Voltage Transistor family.

Datasheet Summary

Description

The HLB121A is a medium power transistor designed for use in switching applications.

Features

  • High breakdown voltage.
  • Low collector saturation voltage.
  • Fast switching speed TO-92 Absolute Maximum Ratings.
  • Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C.
  • Maximum Power Dissipation Total Power Dissipation (TA=25°C).

📥 Download Datasheet

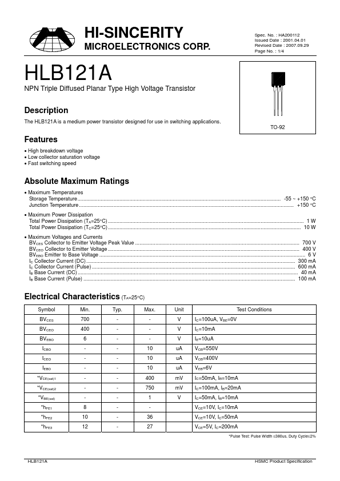

Datasheet preview – HLB121A

Datasheet Details

Part number HLB121A
Manufacturer HI-SINCERITY
File Size 46.33 KB
Description NPN Triple Diffused Planar Type High Voltage Transistor
Datasheet download datasheet HLB121A Datasheet
Additional preview pages of the HLB121A datasheet.

📁 Similar Datasheet

  • HLB121 - NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR (UTC)
  • HLB121I - NPN Triple Diffused Planar Type High Voltage Transistor (Hi-Sincerity Mocroelectronics)
  • HLB121J - NPN Transistor (Hi-Sincerity Mocroelectronics)
  • HLB120A - NPN Triple Diffused Planar Type High Voltage Transistors (Hi-Sincerity Mocroelectronics)
  • HLB122 - NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR (UTC)
  • HLB122I - NPN Transistor (Hi-Sincerity Mocroelectronics)
  • HLB122J - NPN Transistor (Hi-Sincerity Mocroelectronics)
  • HLB122T - NPN Transistor (Hi-Sincerity Mocroelectronics)
  • HLB123D - NPN Transistor (Hi-Sincerity Mocroelectronics)
  • HLB123D - NPN Transistor (INCHANGE)
Other Datasheets by HI-SINCERITY

    Full PDF Text Transcription

    Click to expand full text
    HI-SINCERITY MICROELECTRONICS CORP. HLB121A NPN Triple Diffused Planar Type High Voltage Transistor Spec. No. : HA200112 Issued Date : 2001.04.01 Revised Date : 2007.09.29 Page No. : 1/4 Description The HLB121A is a medium power transistor designed for use in switching applications. Features • High breakdown voltage • Low collector saturation voltage • Fast switching speed TO-92 Absolute Maximum Ratings • Maximum Temperatures Storage Temperature............................................................................................................................................. -55 ~ +150 °C Junction Temperature .....................................................................................................................................................
