HLB122 - NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR

Datasheet Summary

Description

The UTC HLB122 is a medium power transistor designed for use in switching applications.

Features

  • High breakdown voltage.
  • Low collector saturation voltage.
  • Fast switching speed 1 TO-251 1: BASE 2:.

📥 Download Datasheet

Datasheet preview – HLB122

Datasheet Details

Part number HLB122
Manufacturer UTC
File Size 156.46 KB
Description NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR
Datasheet download datasheet HLB122 Datasheet

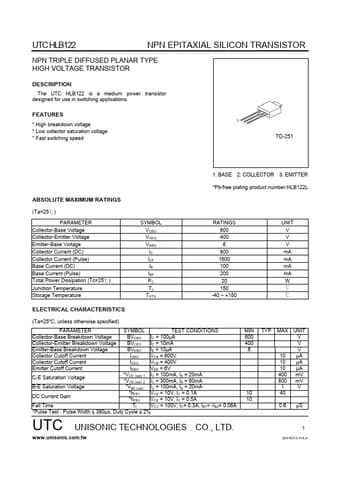

Additional preview pages of the HLB122 datasheet.

📁 Similar Datasheet

  • HLB122I - NPN Transistor (Hi-Sincerity Mocroelectronics)
  • HLB122J - NPN Transistor (Hi-Sincerity Mocroelectronics)
  • HLB122T - NPN Transistor (Hi-Sincerity Mocroelectronics)
  • HLB120A - NPN Triple Diffused Planar Type High Voltage Transistors (Hi-Sincerity Mocroelectronics)
  • HLB121A - NPN Triple Diffused Planar Type High Voltage Transistor (HI-SINCERITY)
  • HLB121I - NPN Triple Diffused Planar Type High Voltage Transistor (Hi-Sincerity Mocroelectronics)
  • HLB121J - NPN Transistor (Hi-Sincerity Mocroelectronics)
  • HLB123D - NPN Transistor (Hi-Sincerity Mocroelectronics)
  • HLB123D - NPN Transistor (INCHANGE)
  • HLB123I - NPN Transistor (Hi-Sincerity Mocroelectronics)
Other Datasheets by UTC
  • HLB121 - NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR
  • HLB124 - NPN EPITAXIAL PLANAR TRANSISTOR

Full PDF Text Transcription

Click to expand full text
UTC HLB122 NPN EPITAXIAL SILICON TRANSISTOR NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR DESCRIPTION The UTC HLB122 is a medium power transistor designed for use in switching applications. FEATURES * High breakdown voltage * Low collector saturation voltage * Fast switching speed 1 TO-251 1: BASE 2: COLLECTOR 3: EMITTER *Pb-free plating product number:HLB122L ABSOLUTE MAXIMUM RATINGS (Ta=25℃) PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Base Current (DC) Base Current (Pulse) Total Power Dissipation (Tc=25℃) Junction Temperature Storage Temperature SYMBOL VCBO VCEO www.DataSheet4U.
