HLB121 - NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR

Datasheet Summary

Description

The UTC HLB121 is a medium power transistor designed for use in switching applications.

Features

  • High breakdown voltage.
  • Low collector saturation voltage.
  • Fast switching speed 1 TO-251 1: BASE 2:.

📥 Download Datasheet

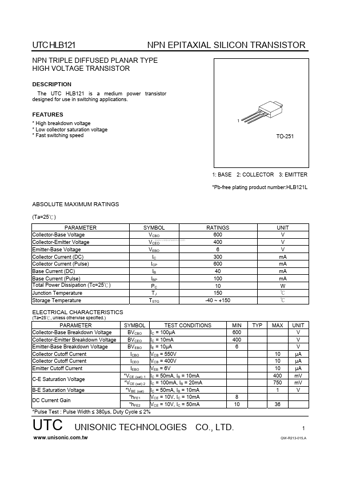

Datasheet preview – HLB121

Datasheet Details

Part number HLB121
Manufacturer UTC
File Size 155.40 KB
Description NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR
