HLB121J - NPN Transistor

This page provides the datasheet information for the HLB121J, a member of the HLB121J_Hi NPN Transistor family.

Datasheet Summary

Description

The HLB121J is a medium power transistor designed for use in switching applications.

Features

  • High breakdown voltage.
  • Low collector saturation voltage.
  • Fast switching speed Absolute Maximum Ratings (Ta=25°C).
  • Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C.
  • Maximum Power Dissipation Total Power Dissipation (Tc=25°C) 10 W.
  • Maximum Voltages and Currents BVCBO Collector to Base Voltage.

📥 Download Datasheet

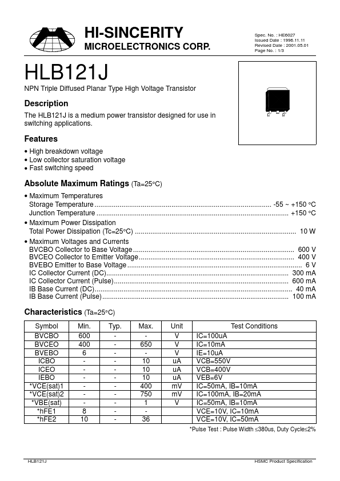

Datasheet preview – HLB121J

Datasheet Details

Part number HLB121J
Manufacturer Hi-Sincerity Mocroelectronics
File Size 31.01 KB
Description NPN Transistor
Datasheet download datasheet HLB121J Datasheet
Additional preview pages of the HLB121J datasheet.
