HLB125HE - NPN Epitaxial Planar Transistor

This page provides the datasheet information for the HLB125HE, a member of the HLB125HE_Hi NPN Epitaxial Planar Transistor family.

Datasheet Summary

Description

The HLB125HE is designed for lighting applications and low switch-mode power supplies.

And it is high voltage capability and high switching speeds.

Features

High Speed Switching.
Low Saturation Voltage.
High Reliability TO-220 Absolute Maximum Ratings (TA=25°C).
Maximum Temperatures Storage Temperature -50 ~ +150 °C Junction Temperature 150 °C Maximum.
Maximum Power Dissipation Total Power Dissipation (TC=25°C) 75 W.
Maximum Voltages.

Datasheet Details

Part number	HLB125HE
Manufacturer	Hi-Sincerity Microelectronics
File Size	50.28 KB
Description	NPN Epitaxial Planar Transistor
Datasheet	HLB125HE Datasheet
Additional preview pages of the HLB125HE datasheet.

📁 Similar Datasheet

HLB125E - NPN Transistor (Hi-Sincerity Mocroelectronics)

HLB120A - NPN Triple Diffused Planar Type High Voltage Transistors (Hi-Sincerity Mocroelectronics)

HLB121 - NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR (UTC)

HLB121A - NPN Triple Diffused Planar Type High Voltage Transistor (HI-SINCERITY)

HLB121I - NPN Triple Diffused Planar Type High Voltage Transistor (Hi-Sincerity Mocroelectronics)

HLB121J - NPN Transistor (Hi-Sincerity Mocroelectronics)

HLB122 - NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR (UTC)

HLB122I - NPN Transistor (Hi-Sincerity Mocroelectronics)

HLB122J - NPN Transistor (Hi-Sincerity Mocroelectronics)

HLB122T - NPN Transistor (Hi-Sincerity Mocroelectronics)

Full PDF Text Transcription

Click to expand full text

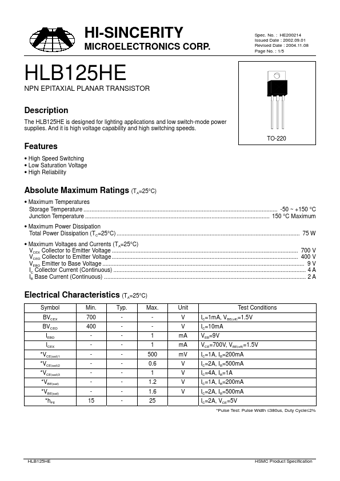

HI-SINCERITY MICROELECTRONICS CORP. HLB125HE NPN EPITAXIAL PLANAR TRANSISTOR Spec. No. : HE200214 Issued Date : 2002.09.01 Revised Date : 2004.11.08 Page No. : 1/5 Description The HLB125HE is designed for lighting applications and low switch-mode power supplies. And it is high voltage capability and high switching speeds. Features • High Speed Switching • Low Saturation Voltage • High Reliability TO-220 Absolute Maximum Ratings (TA=25°C) • Maximum Temperatures Storage Temperature ........................................................................................................................... -50 ~ +150 °C Junction Temperature .....................................................................................................................
