HLB125E, HLB125E_Hi NPN Transistor

HLB125E Description

HI-SINCERITY MICROELECTRONICS CORP.Spec.No.: HE6703 Issued Date : 1992.11.25 Revised Date : 2004.11.03 Page No.: 1/5 HLB125E NPN EPITAXIAL PLANA.
The HLB125E is designed for lighting applications and low switch-mode power supplies.

HLB125E Features

* TO-220 Internal Schematic Diagram C
* High Speed Switching
* Low Saturation Voltage
* High Reliability Absolute Maximum Ratings B E
* Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C
* Maximum Power Dissipation Total Po

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HLB125E, HLB125E_Hi. Please refer to the document for exact specifications by model.

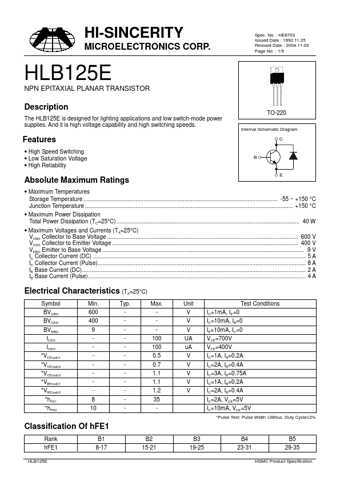

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HLB125E, HLB125E_Hi
Manufacturer
Hi-Sincerity Mocroelectronics
File Size
48.97 KB
Datasheet
HLB125E_Hi-SincerityMocroelectronics.pdf
Description
NPN Transistor
Note
This datasheet PDF includes multiple part numbers: HLB125E, HLB125E_Hi.
Please refer to the document for exact specifications by model.
