HLB122T, HLB122T_Hi - NPN Transistor

Hi-Sincerity Mocroelectronics

Datasheet Details

Part number	HLB122T, HLB122T_Hi
Manufacturer	Hi-Sincerity Mocroelectronics
File Size	41.11 KB
Description	NPN Transistor
Datasheet	HLB122T_Hi-SincerityMocroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: HLB122T, HLB122T_Hi. Please refer to the document for exact specifications by model.

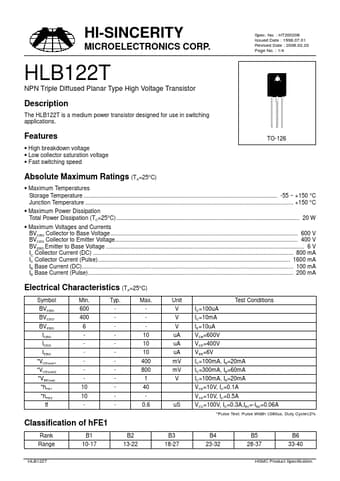

The HLB122T is a medium power transistor designed for use in switching applications.

High breakdown voltage.
Low collector saturation voltage.
Fast switching speed TO-126 Absolute Maximum Ratings (TA=25°C).
Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C.
Maximum Power Dissipation Total Power Dissipation (TC=25°C) 20 W.
Maximum Voltages and Currents B.
