HLB120A - NPN Triple Diffused Planar Type High Voltage Transistors

This page provides the datasheet information for the HLB120A, a member of the HLB120A_Hi NPN Triple Diffused Planar Type High Voltage Transistors family.

Datasheet Summary

Description

The HLB120A is a medium power transistor designed for use in switching applications.

Features

  • High Breakdown Voltage.
  • Low Collector Saturation Voltage.
  • Fast Switching Speed TO-92 Absolute Maximum Ratings.
  • Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C Maximum.
  • Maximum Power Dissipation Total Power Dissipation (TA=25°C) 625 mW Total Power Dissipation (TC=25°C).

📥 Download Datasheet

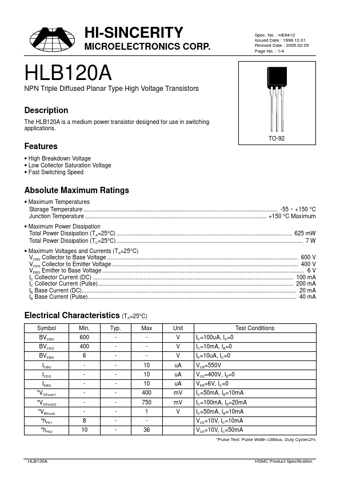

Datasheet preview – HLB120A
