HLB121I - NPN Triple Diffused Planar Type High Voltage Transistor

This page provides the datasheet information for the HLB121I, a member of the HLB121I-Hi NPN Triple Diffused Planar Type High Voltage Transistor family.

Datasheet Summary

Description

The HLB121I is a medium power transistor designed for use in switching applications.

Features

  • High breakdown voltage.
  • Low collector saturation voltage.
  • Fast switching speed TO-251 Absolute Maximum Ratings (TA=25°C).
  • Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C.
  • Maximum Power Dissipation Total Power Dissipation (TC=25°C) 10 W.
  • Maximum Voltages and Currents BVCBO.

📥 Download Datasheet

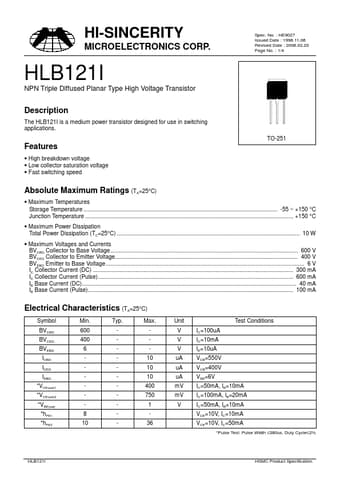

Datasheet preview – HLB121I
