HY1606P Datasheet, Mosfet, HOOYI

HY1606P Features

  • Mosfet
  • 60V/66A RDS(ON) = 10.4 mΩ (typ.) @ VGS=10V
  • 100% avalanche tested
  • Reliable and Rugged
  • Lead Free and Green Devices Available (RoHS Compliant) Pin

PDF File Details

Part number:

HY1606P

Manufacturer:

HOOYI

File Size:

2.64MB

Download:

📄 Datasheet

Description:

N-channel enhancement mode mosfet. DS G TO-220FB-3L DS G TO-263-2L Applications

  • Switching application
  • Power Management for Inverter Systems. D G

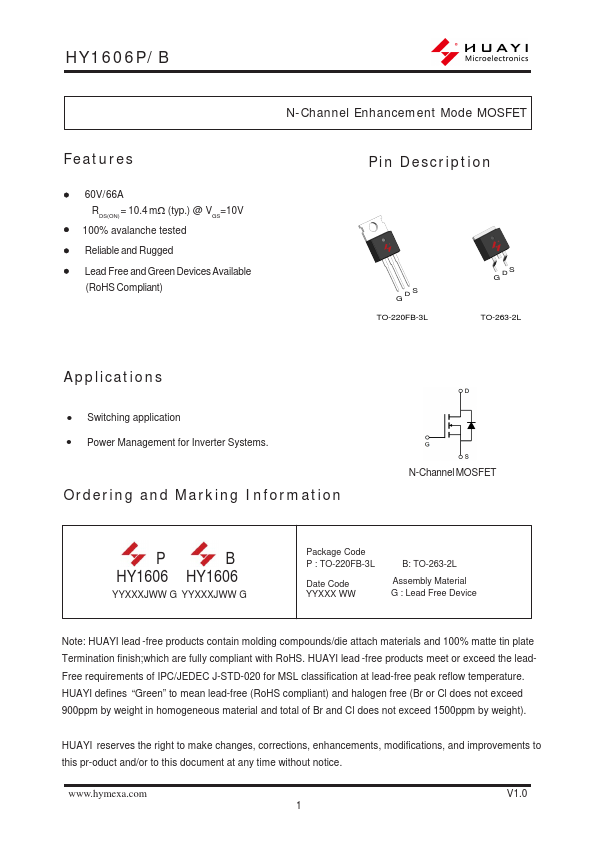

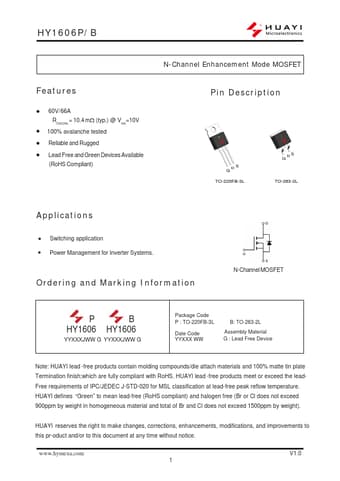

  • Datasheet Preview: HY1606P 📥 Download PDF (2.64MB)

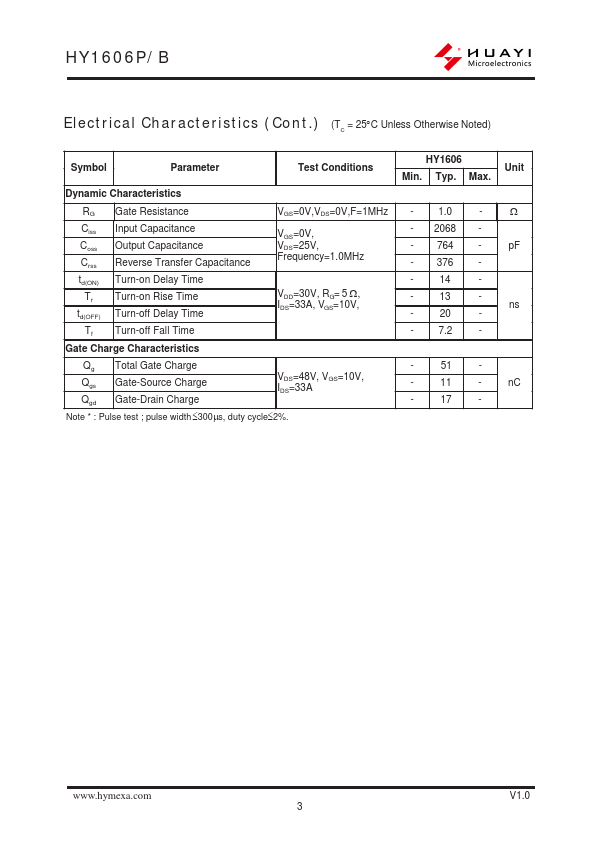

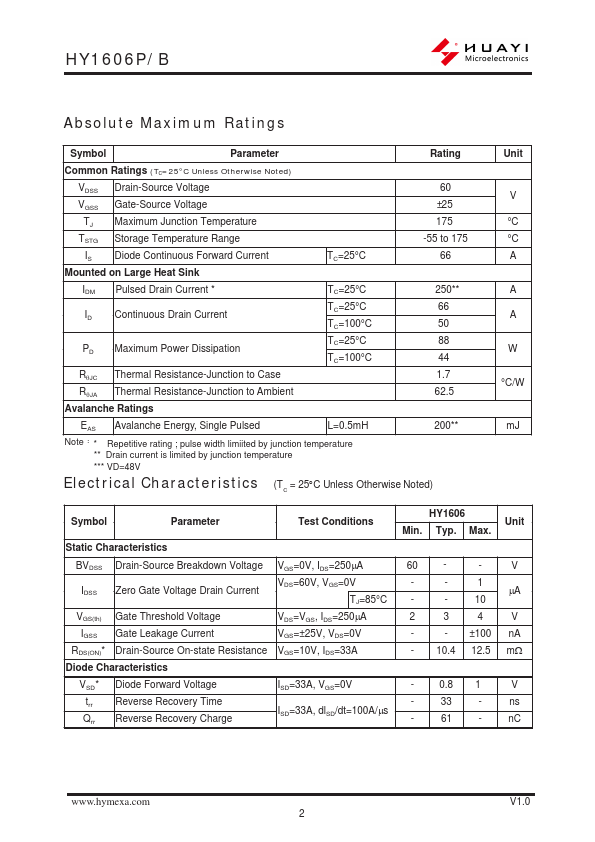

    Page 2 of HY1606P Page 3 of HY1606P

    HY1606P Application

    • Applications
    • Switching application
    • Power Management for Inverter Systems. D G N-Channel MOSFET Ordering and Marking Informatio
