SI2318 Datasheet - HOTTECH

SI2318 - N-Channel MOSFET

Plastic-Encapsulate Mosfets PRODUCT SUMMARY VDS (V) RDS(on) () 0.042 at VGS = 10 V 40 0.051 at VGS = 4.5 V ID (A)a 5.6 5.1 Qg (Typ.) 2.9 nC APPLICATIONS DC/DC Converters Load Switch Portable and Consumer Applications SI2318 N-Channel MOSFET 1.Gate 2.Source 3.Drain G SOT-23 D S ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 1

SI2318-HOTTECH.pdf

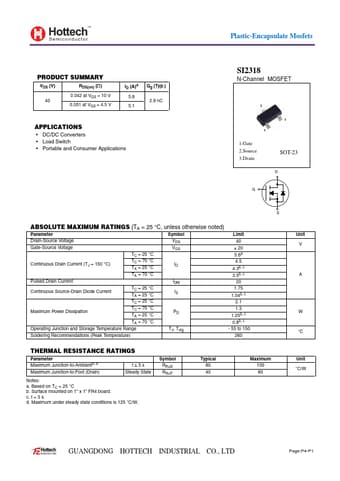

Preview of SI2318 PDF
SI2318 Datasheet Preview Page 2 SI2318 Datasheet Preview Page 3

Datasheet Details

Part number:

SI2318

Manufacturer:

HOTTECH

File Size:

758.38 KB

Description:

N-channel mosfet.
