HPND-4018

Beam Lead PIN Diodes

HPND-4018 Features

* Low Capacitance 0.025 pF Maximum at 1 MHz Guaranteed Min./Max.

* Fast Switching 2.0 nsec

* Low Resistance at Low Bias 1.5 Ω at IF = 10 mA (Typical)

* Rugged Construction Typical 10 Gram Lead Pull

* Silicon Nitride Passivation Description The HPND-4018, 4028,

HPND-4018 General Description

The HPND-4018, 4028, and 4038 beam lead PIN diodes are designed for low capacitance, low resistance, and fast switching at microwave frequencies. These characteristics are achieved at low bias levels for minimal power consumption. Advanced processing techniques ensure uniform and consistent electric.

HPND-4018 Datasheet (62.16 KB)

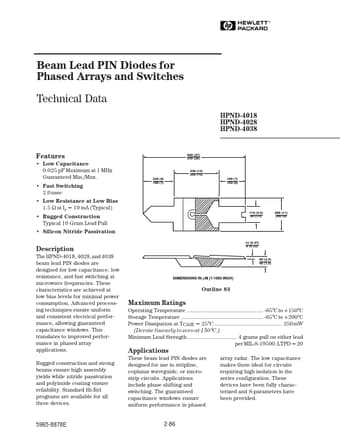

Preview of HPND-4018 PDF

Datasheet Details

Part number:

HPND-4018

Manufacturer:

HP

File Size:

62.16 KB

Description:

Beam lead pin diodes.
