HPND-4038, HPND-4018, Beam Lead PIN Diodes

Beam Lead PIN Diodes for Phased Arrays and Switches Technical Data HPND-4018 HPND-4028 HPND-4038 .
The HPND-4018, 4028, and 4038 beam lead PIN diodes are designed for low capacitance, low resistance, and fast switching at microwave frequencies.

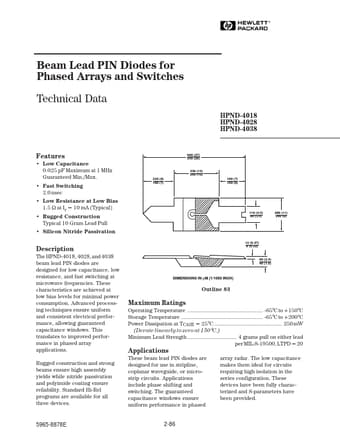

datasheet Preview Page 1 from Datasheet4u.com

HPND-4018-HP.pdf

HPND-4038 Datasheet Preview — This datasheet PDF includes multiple part numbers: HPND-4038, HPND-4018. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HPND-4038, HPND-4018

Manufacturer:

File Size:

62.16 KB

Description:

Beam Lead PIN Diodes

Note:

This datasheet PDF includes multiple part numbers: HPND-4038, HPND-4018.
Please refer to the document for exact specifications by model.

Features

* Low Capacitance 0.025 pF Maximum at 1 MHz Guaranteed Min. /Max.
* Fast Switching 2.0 nsec
* Low Resistance at Low Bias 1.5 Ω at IF = 10 mA (Typical)
* Rugged Construction Typical 10 Gram Lead Pull

Applications

* Rugged construction and strong beams ensure high assembly yields while nitride passivation and polyimide coating ensure reliability. Standard Hi-Rel programs are available for all three devices. 220 (9) 180 (7) 690 (27) 650 (26) 330 (13) 260 (10) 180 (7) 160 (6) 110 (4.5) 90 (3.5) 280 (11) 240
