* Low Collector Saturation Voltage
* High Speed Switching Transistor Absolute Maximum Ratings
* Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C Maximum
* Maximum Power Dissipation Total Power Dissipation (Ta=25°C) 625 mW

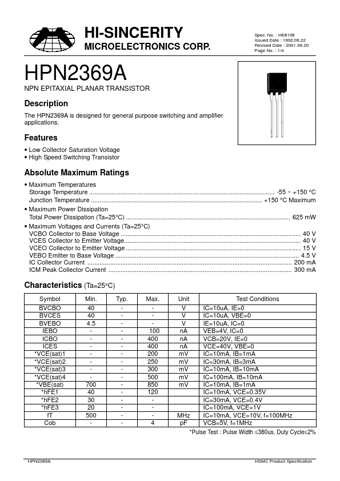

HPN2369A
Hi-Sincerity Mocroelectronics
38.23 KB
Npn epitaxial planar transistor.
HI-SINCERITY
MICROELECTRONICS CORP.
Spec. No. : HE6106 Issued Date : 1992.09.22 Revised Date : 2001.09.20 Page No. : 1/4
HPN2369A
NPN EPITAXIAL PLAN.
